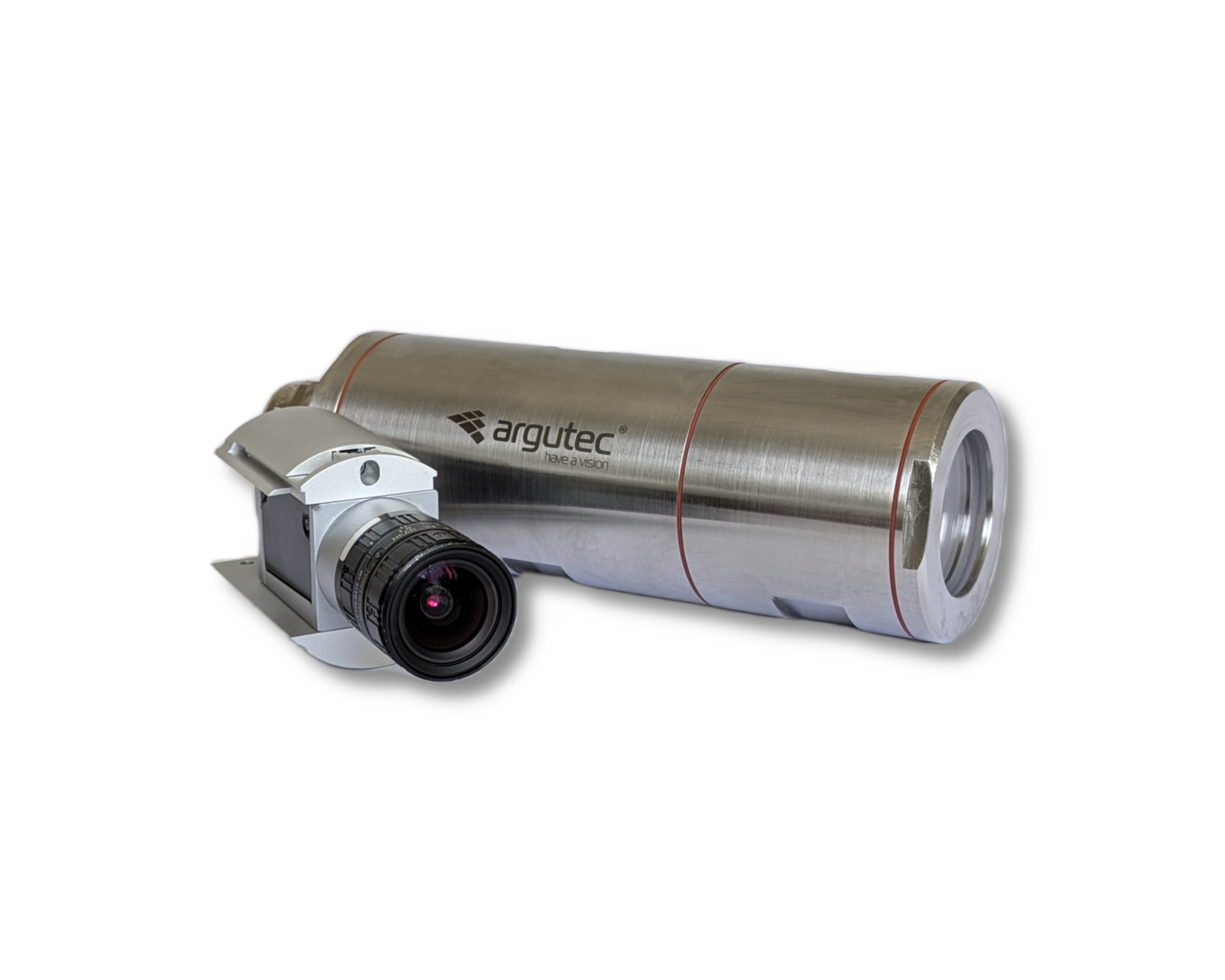

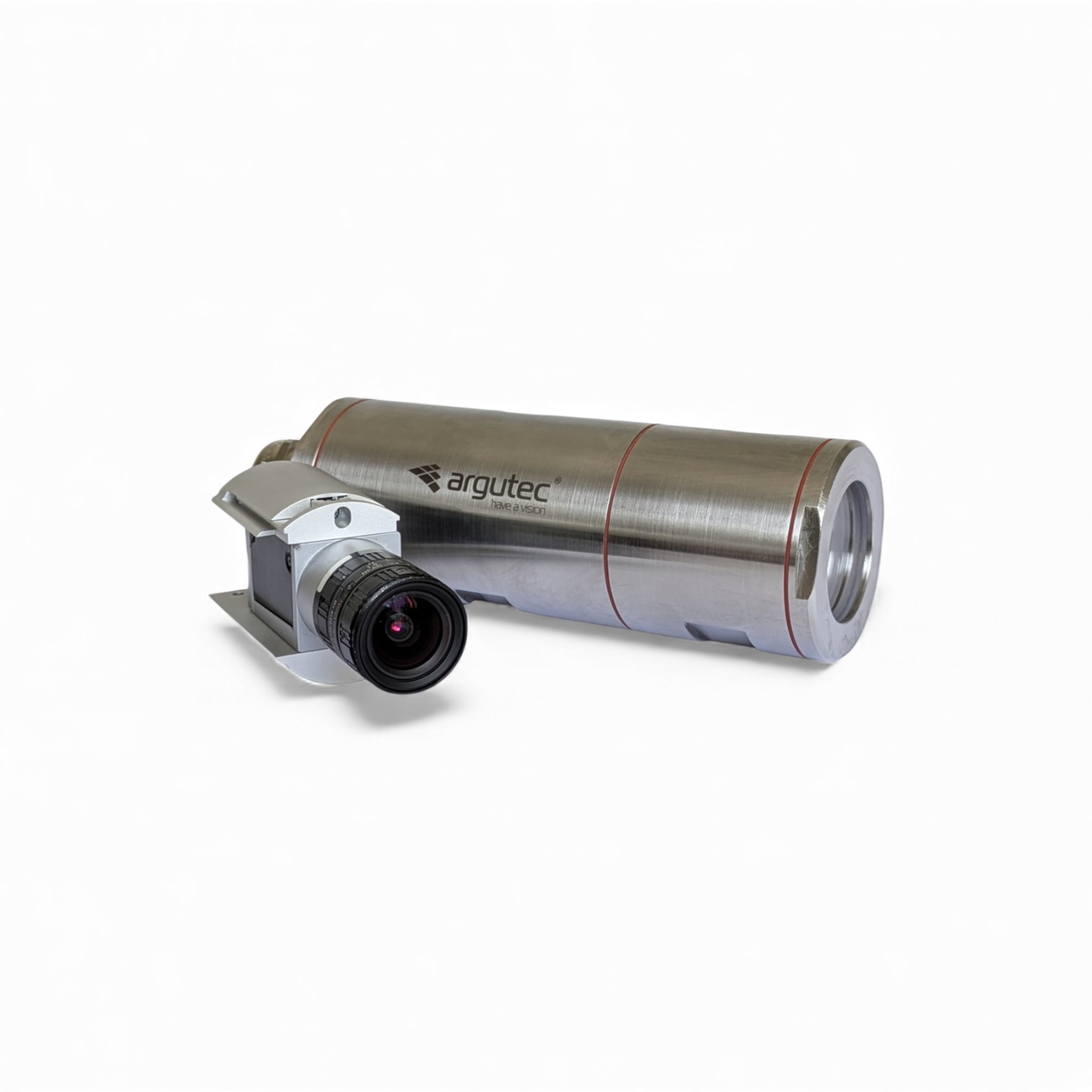

The CHS50 camera housing is designed for maximum durability and reliability in demanding industrial environments, including the food and chemical industries. Its stainless steel body provides not only mechanical protection but also passive cooling for the camera. The front part of the housing is adapted for easy lens adjustment, enhancing flexibility during installation. The housing is equipped with a cable gland for one or two cables, making the connection process easier. The easily removable front and rear parts ensure simple handling and maintenance. The IP68 protection rating with a resistance of up to 5 bars guarantees protection against dust and water, making the CHS50 an ideal choice for environments with high hygiene and durability requirements.
Accessories:
Cable gland with insert for 1 or 2 cables Ø 4–6 mm.
Spacer for securing the camera.
2x M2x6 screws and 2x M3x6 screws for fixing the camera to the fixed part of the spacer.
Stainless steel mounting console.
Standard camera mount:
BASLER
|
|
COGNEX
|
ALLIED VISION
|
|
| ace acA640 |
ace 2 a2A1920 |
Cognex CIC-10MR |
Mako G-030 |
Guppy PRO F-125 |
| ace acA720 |
ace 2 a2A2448 |
Cognex CIC-1300 |
Mako G-032 |
Guppy PRO F-146 |
| ace acA780 |
ace 2 a2A2590 |
Cognex CIC-2000 |
Mako G-040 |
Guppy PRO F-201 |
| ace acA800 |
ace 2 a2A2840 |
Cognex CIC-300 |
Mako G-152 |
|
| ace acA1300 |
ace 2 a2A3840 |
Cognex CIC-4000 |
Mako G-131 |
LUCID
|
| ace acA1440 |
ace 2 a2A4096 |
Cognex CIC-5MR/5000 |
Mako G-158 |
Triton TRI200S |
| ace acA1600 |
ace 2 a2A4504 |
|
Mako G-192 |
Triton TRI120S |
| ace acA1920 |
ace 2 a2A5320 |
FLIR
|
Mako G-223 |
Triton TRI122S |
| ace acA2000 |
ace 2 a2A5328 |
FLIR Blackfly |
Mako G-234 |
Triton TRI089S |
| ace acA2040 |
|
FLIR Blackfly S |
Mako G-319 |
Triton TRI071S |
| ace acA2440 |
|
FLIR Flea3 |
Mako G-419 |
Triton TRI064S |
| ace acA2500 |
|
|
Mako G-503 |
Triton TRI050S |
| ace acA3088 |
|
KEYENCE
|
Mako G-507 |
Triton TRI032S |
| ace acA3800 |
|
CV-3000 CV-035 |
Mako U-029 |
Triton TRI028S |
| ace acA4024 |
|
CV-3000 CV-200 |
Mako U-051 |
Triton TRI023S |
| ace acA4600 |
|
CV-5000 CV-H500 |
Mako U-130 |
Triton TRI016S |
| ace acA5472 |
|
|
Mako U-503 |
Triton TRI004S |
| ace acA4096 |
|
|
Guppy F-033 |
Triton TRI02KA |
| ace acA4112 |
|
|
Guppy F-046 |
Phoenix PHX200S |
| MED ace 2.3 |
|
|
Guppy F-080 |
Phoenix PHX120S |
| MED ace 5.1 |
|
|
Guppy F-146 |
Phoenix PHX089S |
| MED ace 5.3 |
|
|
Guppy PRO F-031 |
|
| MED ace 8.9 |
|
|
Guppy PRO F-032 |
|
| MED ace 12.3 |
|
|
Guppy PRO F-033 |
|
| MED ace 20.0 |
|
|
Guppy PRO F-046 |
|
Optional camera mount:
IMAGING SOURCE
|
IDS IMAGING
|
DAHENG IMAGING
|
|
|
| DxK 33UJ003 |
uEye xx-5040CP |
MER2-302-37G |
MER-503-20G (P) |
VCXU 123 |
| DxK 23UM021 |
uEye GV-5080CP-P |
MER2-202-60G |
MER-200-20G (P) |
VCXU 124 |
| DxK 23UV024 |
uEye xx-5240CP |
ME2P-2621-15U3 |
MER-132-43x |
VCXU 125 |
| DxK 23UP031 |
uEye xx-5250CP |
ME2P-1230-23U3 |
MER-131-75G (P) |
VCXU 13 |
| DxK xxUX174 |
uEye xx-5260CP |
MER2-2000-19U3 |
MER-125-30x |
VCXU 15 |
| DxK 33UX178 |
uEye xx-5270CP |
MER2-1220-32U3 |
MER-050-200G (P) |
VCXU 201 |
| DxK 33UX183 |
uEye xx-5280CP |
MER2-503-36U3 |
MER-032-120G (P) |
VCXU 22 |
| DxK 33UX226 |
uEye xx-5480CP |
MER2-502-79U3 |
MER-031-300G (P) |
VCXU 23 |
| DxK 23UX236 |
uEye xx-5580CP |
MER2-301-125U3 |
MER-030-120x |
VCXU 24 |
| DxK x3UX249 |
uEye xx-5860CP |
MER-1220-32U3 (L) |
MER-130-30U (L) |
VCXU 25 |
| DxK 33xX250 |
uEye xx-5880CP |
MER-160-227U3 (L) |
MER-500-7U (L) |
VCXU 31 |
| DxK 33UX252 |
uEye GV-5890CP |
MER-041-436U3 (L) |
MER-310-12U (L) |
VCXU 32 |
| DxK 33UX264 |
uEye Ux-3040CP |
MER-2000-19U3 (L) |
MER-132-30U (L) |
VCXU 50 |
| DxK 33UX265 |
uEye Ux-3060CP |
MER-630-60U3 (L) |
MER-040-30U (L) |
VCXU 51 |
| DxK 33UX273 |
uEye Ux-3070CP |
MER-051-120x |
|
VCXU 53 |
| DxK 23U274 |
uEye Ux-3080CP |
MER-1810-21U3 (L) |
BAUMER
|
VCXU 65 |
| DxK 33UX287 |
uEye U3-3080CP-P |
MER-1520-13U3 (L) |
VEXG 02 |
VCXU 90 |
| DxK 33UX290 |
uEye Ux-3260CP |
MER-1070-14U3 (L) |
VEXG 100 |
VCXU 91 |
| DxK 23U445 |
uEye Ux-3270CP |
MER-503-36U3 (L) |
VEXG 13 |
|
| DxK 23U618 |
uEye Ux-3280CP |
MER-502-79U3 (L) |
VEXG 25 |
|
| DxK x3UP1300 |
uEye U3-3800CP |
MER-500-14x |
VEXG 52 |
|
| DxK 33UP2000 |
uEye Ux-3860CP |
MER-302-56U3 (L) |
VEXG 24 |
|
| DxK 33UP5000 |
uEye Ux-3880CP |
MER-301-125U3 (L) |
VCXG 02 |
|
| |
uEye U3-3890CP |
MER-231-41x |
VCXG 04 |
|
| |
uEye UI-3130CP |
MER-1520-7G (P) |
VCXG 53 |
|
| |
uEye UI-3140CP |
MER-1070-10G (P) |
VCXG 65 |
|
| |
uEye UI-3160CP |
MER-133-54x |
VCXG 13 |
|
| |
uEye UI-3180CP |
MER-131-210U3 (L) |
VCXG 15 (.I. = no!) |
|
| |
uEye UI-3220CP |
MER-050-560U3 (L) |
VCXG 201 |
|
| |
uEye UI-3240CP |
MER-031-860U3 (L) |
VCXG 22 |
|
| |
uEye UI-3250CP |
MER-041-302G (P) |
VCXG 23 |
|
| |
uEye UI-3360CP |
MER-1220-9G (P) |
VCXG 24 |
|
| |
uEye UI-3370CP |
MER-630-16G (P) |
VCXG 25 |
|
| |
uEye UI-3480CP |
MER-232-48G (P) |
VCXG 32 (.I. = no!) |
|
| |
uEye UI-3580CP |
MER-201-25G (P) |
VCXG 50 |
|
| |
uEye UI-3590CP |
MER-2000-5G (P) |
VCXG 51 (.I. = no!) |
|
| |
uEye UI-5130CP |
MER-1520-7G (P) |
VCXG 53 |
|
| |
uEye UI-5140CP |
MER-1070-10G (P) |
VCXG 65 |
|
| |
uEye UI-5220CP |
MER-531-20G (P) |
VCXG 91 |
|
| |
uEye UI-5360CP |
MER-530-20G (P) |
VCXU 02 |
|
| |
uEye UI-5370CP |
MER-504-10G (P) |
VCXU 04 |
|
* please specify the exact type of camera in the order.
