Overview
The CH50 rugged industrial camera housing provides increased protection for small industrial cameras (27x27, 29x29, 30x30, 31x31, 40x30mm, ....) not only against mechanical damage, but also against dirt, grease, dust, water or overheating. Special designs and seals provide IP69 resistance against pressurized water. This ensures your visual system´s longevitity and reliability.
Thanks to it´s quiding rods, the CH50 enclosure is quick and simple to use. Even when replacing the lens or camera, there is no need to remove the housing at the installation site. See for yourself, it can be done even with just one hand.
IP69 (IP69K)
Our enclosure CH50 has been certified to IP66 from the beginning, ie especially for industrial environments where pressurized water is present.
Due to the increasing demand for installation in food operations, the CH50 enclosure has now passed IP69 certification without any design changes.
The test for IP69 certification according to EN 60529 is the same as the test for IP69K certification according to ISO 20653.
Passive cooling as secondary camera protection
The CH50 enclosure features a spacer system for mounting the camera, which ensures heat transition from the camera to the enclosure´s body. The camera temperature is therefore significantly reduced only by passive cooling of the CH50 enclosure. It can be seen from the temperature profile that the CH50 enclosure maintains a lower camera temperature. There is a significant effect on the lens, when without the use of an enclosure, practically all the heat of the camera is transferred to the lens, but when heat is removed by the enclosure, the lens still remains a bit cooler.

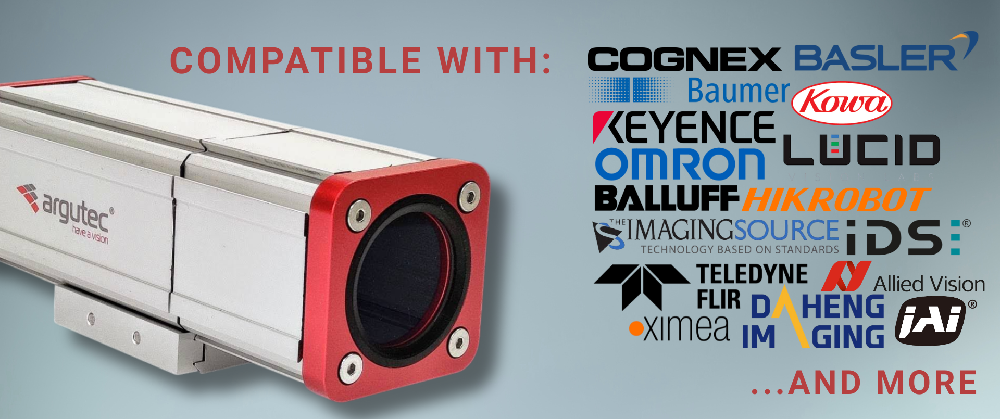

Wide compatibility
The CH50 cover is a universal solution for small industrial cameras. It is designed primarily for standard 29x29 mm cameras, but can also accommodate wider cameras (up to 40 mm). With small customizations, it can also accommodate taller (30-31 mm) or wider (up to 44 mm) cameras *. For cameras shorter than 28 mm, we will modify the mounting plates so that they can also be securely and reliably mounted in the cover. **
Camera dimensions:
min. height
(customized enclosure): | standard height: | max. height
(customized enclosure): | standard width: | max. width
(customized enclosure) |
| <27mm | 28-29mm | 31mm | 27-40mm | 44mm |
Standard mounting plates offer the option of attaching the camera using 2x M2 (12 mm) or 2x M3 (20–26 mm) threads. If your chosen camera requires a different type of mounting, we will be happy to prepare it for you.
Depending on the selected camera type and connectors, it may also be appropriate to choose a non-standard length. It is no problem to prepare a longer or shorter cover. The standard length is 150 mm, where the front part is 50 mm and the rear part is 100 mm. Depending on the size of the camera you are using, there may not be enough space in the enclosure for the connector, and the lens used may also require more space. We will deliver the atypical length The picture shows a comparison of a housing of an atypical length of 180 mm (80 + 100) compared to a standard length.
To ensure compatibility between the selected optical system and the cover, please specify the selected camera and lens when ordering, we will check it for you.
OEM and large orders
For our partners, we provide extra perks such as such as custom logo printing and bulk pricing. If you´re interested in ordering larger quantities, please contact us for details.
Standard camera mount:
BASLER | | COGNEX | ALLIED VISION | |
| ace acA640 | ace 2 a2A1920 | Cognex CIC-10MR | Mako G-030 | Guppy PRO F-125 |
| ace acA720 | ace 2 a2A2448 | Cognex CIC-1300 | Mako G-032 | Guppy PRO F-146 |
| ace acA780 | ace 2 a2A2590 | Cognex CIC-2000 | Mako G-040 | Guppy PRO F-201 |
| ace acA800 | ace 2 a2A2840 | Cognex CIC-300 | Mako G-152 | |
| ace acA1300 | ace 2 a2A3840 | Cognex CIC-4000 | Mako G-131 | LUCID |
| ace acA1440 | ace 2 a2A4096 | Cognex CIC-5MR/5000 | Mako G-158 | Triton TRI200S |
| ace acA1600 | ace 2 a2A4504 | | Mako G-192 | Triton TRI120S |
| ace acA1920 | ace 2 a2A5320 | FLIR | Mako G-223 | Triton TRI122S |
| ace acA2000 | ace 2 a2A5328 | FLIR Blackfly | Mako G-234 | Triton TRI089S |
| ace acA2040 | | FLIR Blackfly S | Mako G-319 | Triton TRI071S |
| ace acA2440 | | FLIR Flea3 | Mako G-419 | Triton TRI064S |
| ace acA2500 | | | Mako G-503 | Triton TRI050S |
| ace acA3088 | | KEYENCE | Mako G-507 | Triton TRI032S |
| ace acA3800 | | CV-3000 CV-035 | Mako U-029 | Triton TRI028S |
| ace acA4024 | | CV-3000 CV-200 | Mako U-051 | Triton TRI023S |
| ace acA4600 | | CV-5000 CV-H500 | Mako U-130 | Triton TRI016S |
| ace acA5472 | | | Mako U-503 | Triton TRI004S |
| ace acA4096 | | | Guppy F-033 | Triton TRI02KA |
| ace acA4112 | | | Guppy F-046 | Phoenix PHX200S |
| MED ace 2.3 | | | Guppy F-080 | Phoenix PHX120S |
| MED ace 5.1 | | | Guppy F-146 | Phoenix PHX089S |
| MED ace 5.3 | | | Guppy PRO F-031 | |
| MED ace 8.9 | | | Guppy PRO F-032 | |
| MED ace 12.3 | | | Guppy PRO F-033 | |
| MED ace 20.0 | | | Guppy PRO F-046 | |
IMAGING SOURCE | IDS IMAGING | DAHENG IMAGING | | |
| DxK 33UJ003 | uEye xx-5040CP | MER2-302-37G | MER-503-20G (P) | VCXU 123 |
| DxK 23UM021 | uEye GV-5080CP-P | MER2-202-60G | MER-200-20G (P) | VCXU 124 |
| DxK 23UV024 | uEye xx-5240CP | ME2P-2621-15U3 | MER-132-43x | VCXU 125 |
| DxK 23UP031 | uEye xx-5250CP | ME2P-1230-23U3 | MER-131-75G (P) | VCXU 13 |
| DxK xxUX174 | uEye xx-5260CP | MER2-2000-19U3 | MER-125-30x | VCXU 15 |
| DxK 33UX178 | uEye xx-5270CP | MER2-1220-32U3 | MER-050-200G (P) | VCXU 201 |
| DxK 33UX183 | uEye xx-5280CP | MER2-503-36U3 | MER-032-120G (P) | VCXU 22 |
| DxK 33UX226 | uEye xx-5480CP | MER2-502-79U3 | MER-031-300G (P) | VCXU 23 |
| DxK 23UX236 | uEye xx-5580CP | MER2-301-125U3 | MER-030-120x | VCXU 24 |
| DxK x3UX249 | uEye xx-5860CP | MER-1220-32U3 (L) | MER-130-30U (L) | VCXU 25 |
| DxK 33xX250 | uEye xx-5880CP | MER-160-227U3 (L) | MER-500-7U (L) | VCXU 31 |
| DxK 33UX252 | uEye GV-5890CP | MER-041-436U3 (L) | MER-310-12U (L) | VCXU 32 |
| DxK 33UX264 | uEye Ux-3040CP | MER-2000-19U3 (L) | MER-132-30U (L) | VCXU 50 |
| DxK 33UX265 | uEye Ux-3060CP | MER-630-60U3 (L) | MER-040-30U (L) | VCXU 51 |
| DxK 33UX273 | uEye Ux-3070CP | MER-051-120x | | VCXU 53 |
| DxK 23U274 | uEye Ux-3080CP | MER-1810-21U3 (L) | BAUMER | VCXU 65 |
| DxK 33UX287 | uEye U3-3080CP-P | MER-1520-13U3 (L) | VEXG 02 | VCXU 90 |
| DxK 33UX290 | uEye Ux-3260CP | MER-1070-14U3 (L) | VEXG 100 | VCXU 91 |
| DxK 23U445 | uEye Ux-3270CP | MER-503-36U3 (L) | VEXG 13 | |
| DxK 23U618 | uEye Ux-3280CP | MER-502-79U3 (L) | VEXG 25 | |
| DxK x3UP1300 | uEye U3-3800CP | MER-500-14x | VEXG 52 | |
| DxK 33UP2000 | uEye Ux-3860CP | MER-302-56U3 (L) | VEXG 24 | |
| DxK 33UP5000 | uEye Ux-3880CP | MER-301-125U3 (L) | VCXG 02 | |
| | uEye U3-3890CP | MER-231-41x | VCXG 04 | |
| | uEye UI-3130CP | MER-230-168U3 (L) | VCXG 124 (.I. = no!) | |
| | uEye UI-3140CP | MER-134-93U3 (L) | VCXG 125 | |
| | uEye UI-3160CP | MER-133-54x | VCXG 13 | |
| | uEye UI-3180CP | MER-131-210U3 (L) | VCXG 15 (.I. = no!) | |
| | uEye UI-3220CP | MER-050-560U3 (L) | VCXG 201 | |
| | uEye UI-3240CP | MER-031-860U3 (L) | VCXG 22 | |
| | uEye UI-3250CP | MER-041-302G (P) | VCXG 23 | |
| | uEye UI-3360CP | MER-1220-9G (P) | VCXG 24 | |
| | uEye UI-3370CP | MER-630-16G (P) | VCXG 25 | |
| | uEye UI-3480CP | MER-232-48G (P) | VCXG 32 (.I. = no!) | |
| | uEye UI-3580CP | MER-201-25G (P) | VCXG 50 | |
| | uEye UI-3590CP | MER-2000-5G (P) | VCXG 51 (.I. = no!) | |
| | uEye UI-5130CP | MER-1520-7G (P) | VCXG 53 | |
| | uEye UI-5140CP | MER-1070-10G (P) | VCXG 65 | |
| | uEye UI-5220CP | MER-531-20G (P) | VCXG 91 | |
| | uEye UI-5360CP | MER-530-20G (P) | VCXU 02 | |
| | uEye UI-5370CP | MER-504-10G (P) | VCXU 04 | |
Optional camera mount:
COGNEX | FLIR | Others * |
| IN-SIGHT 8000* | Firefly DL* | |
| IN-SIGHT 8200* | Firefly S* | |
| IN-SIGHT 8400* | | |
| IN-SIGHT 8401* | | |
| IN-SIGHT 8402* | | |
| IN-SIGHT 8405* | | |
* please specify the exact type of camera in the order.
