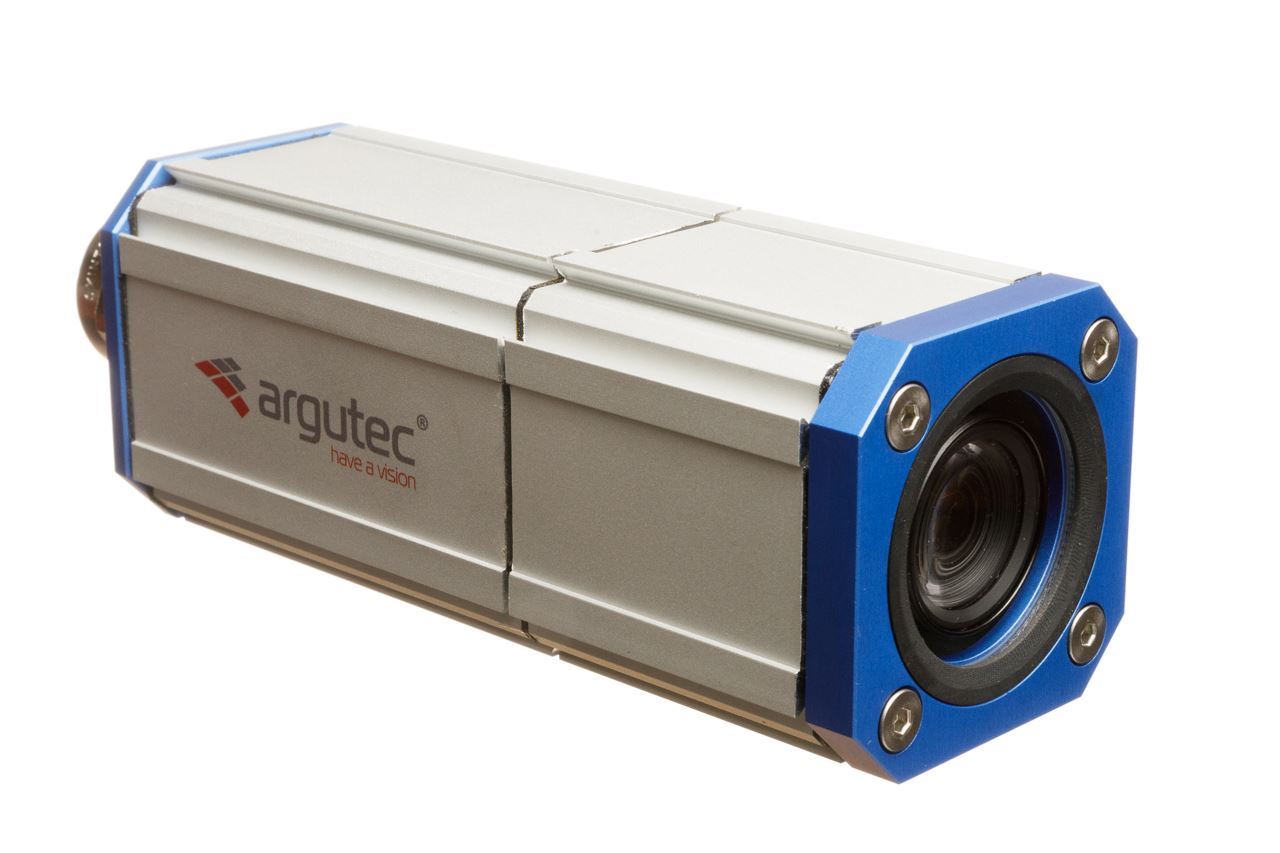

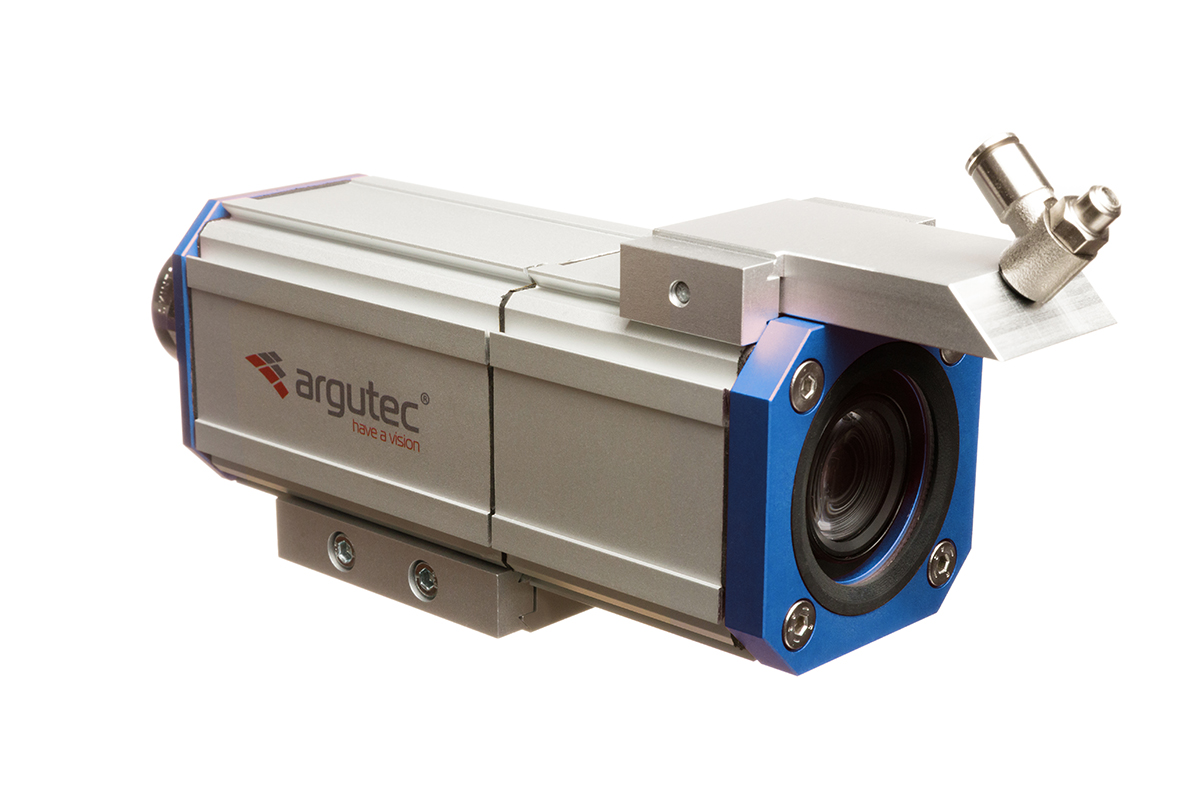

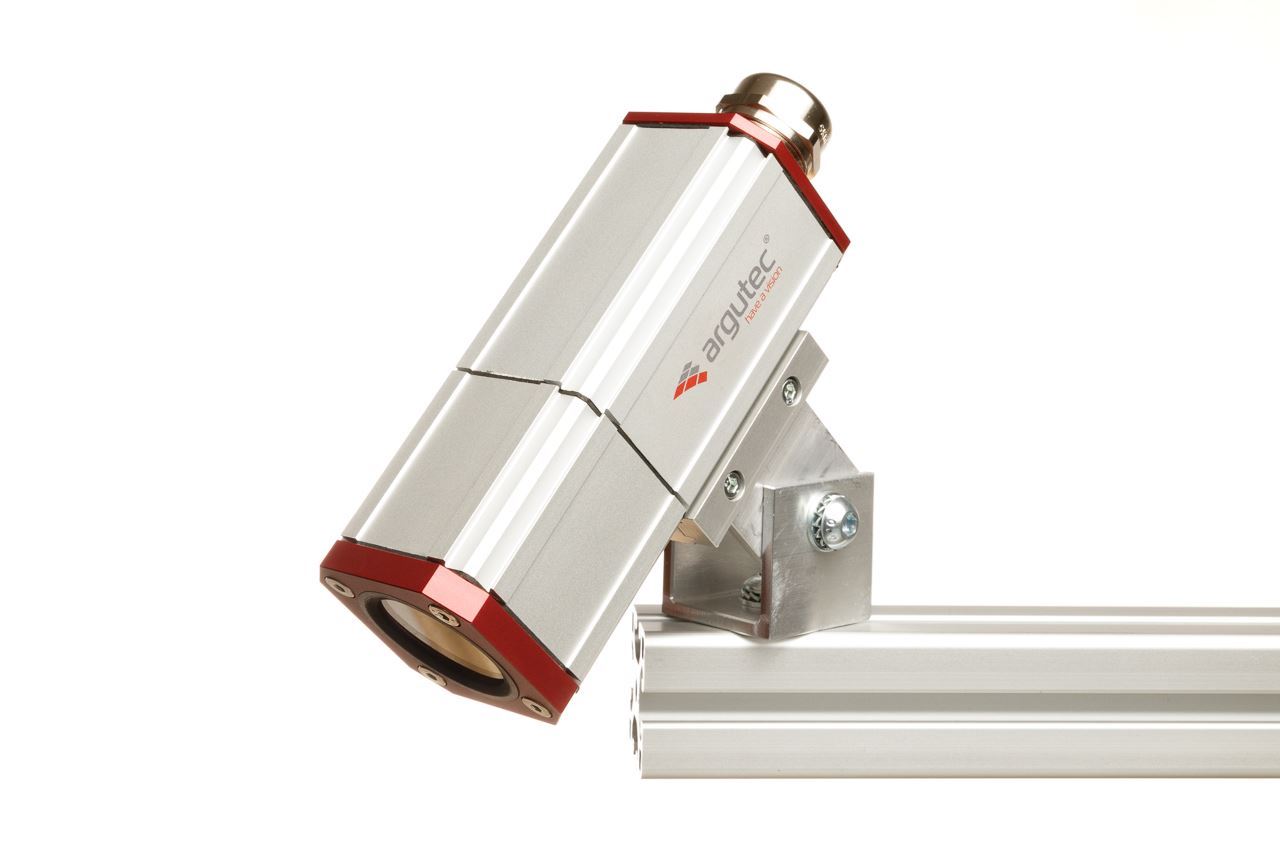

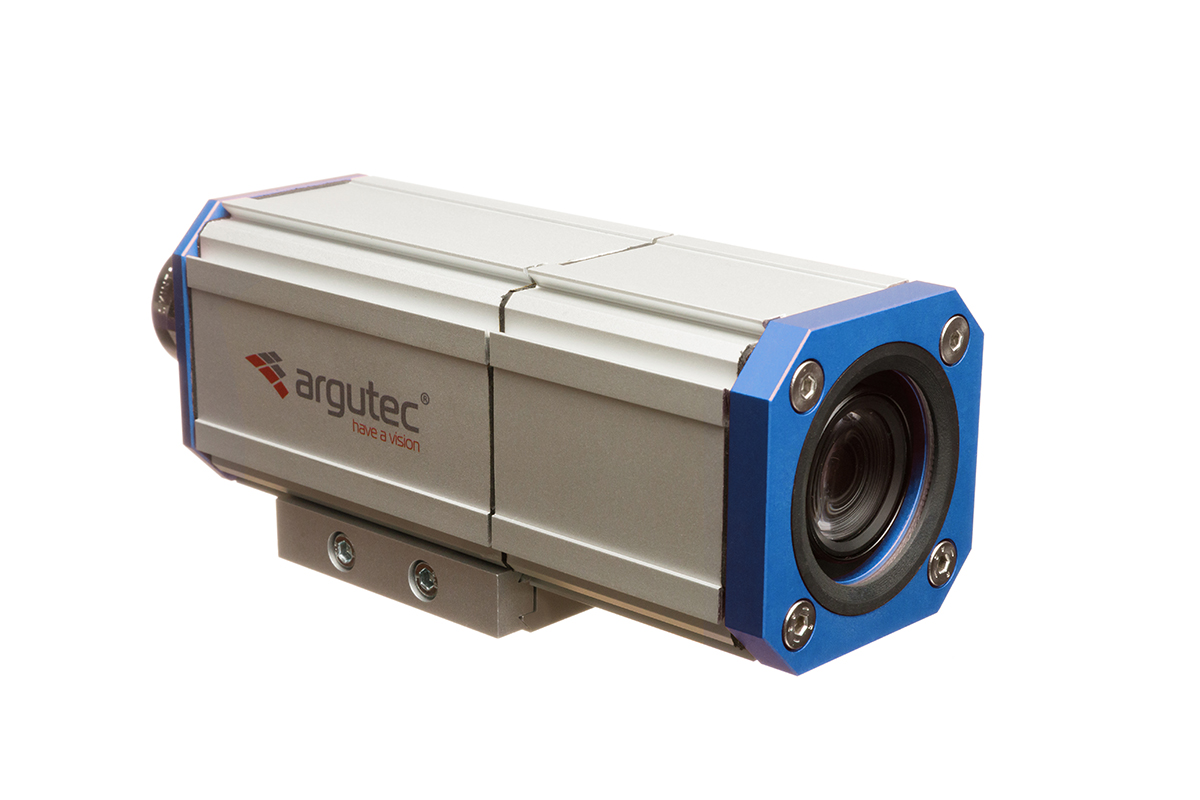

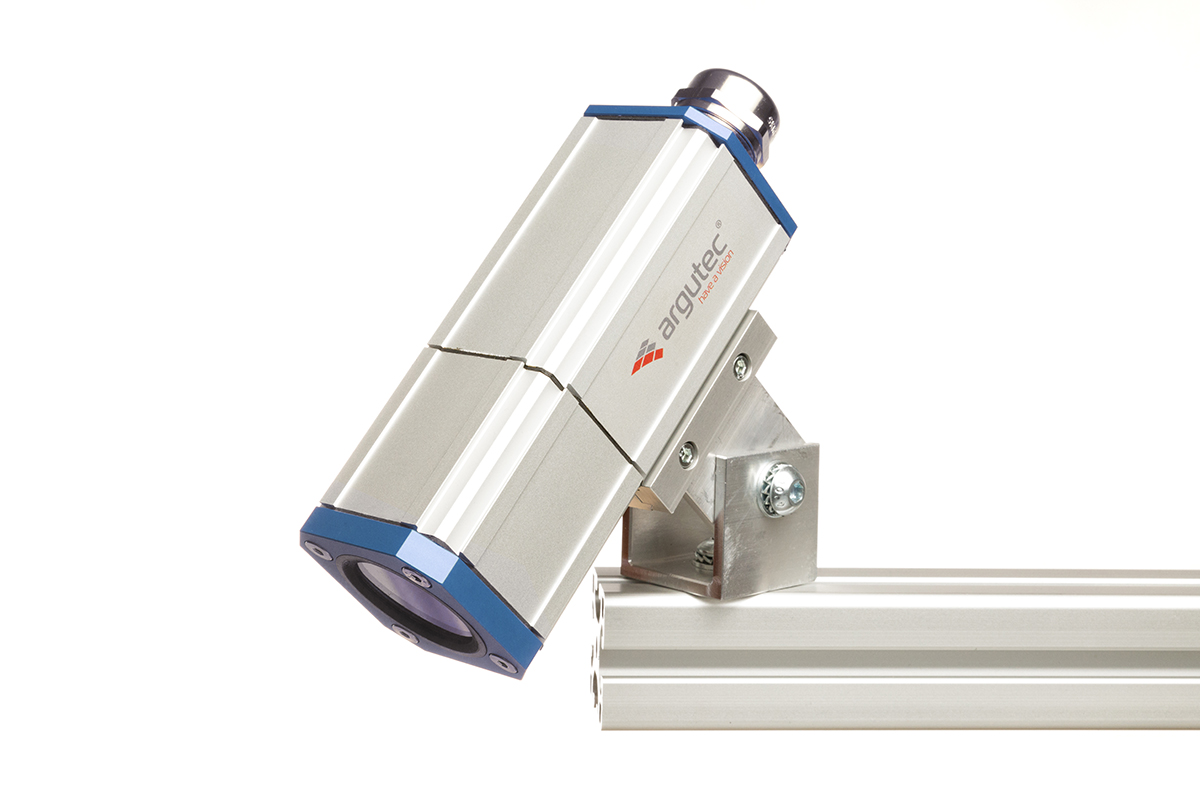

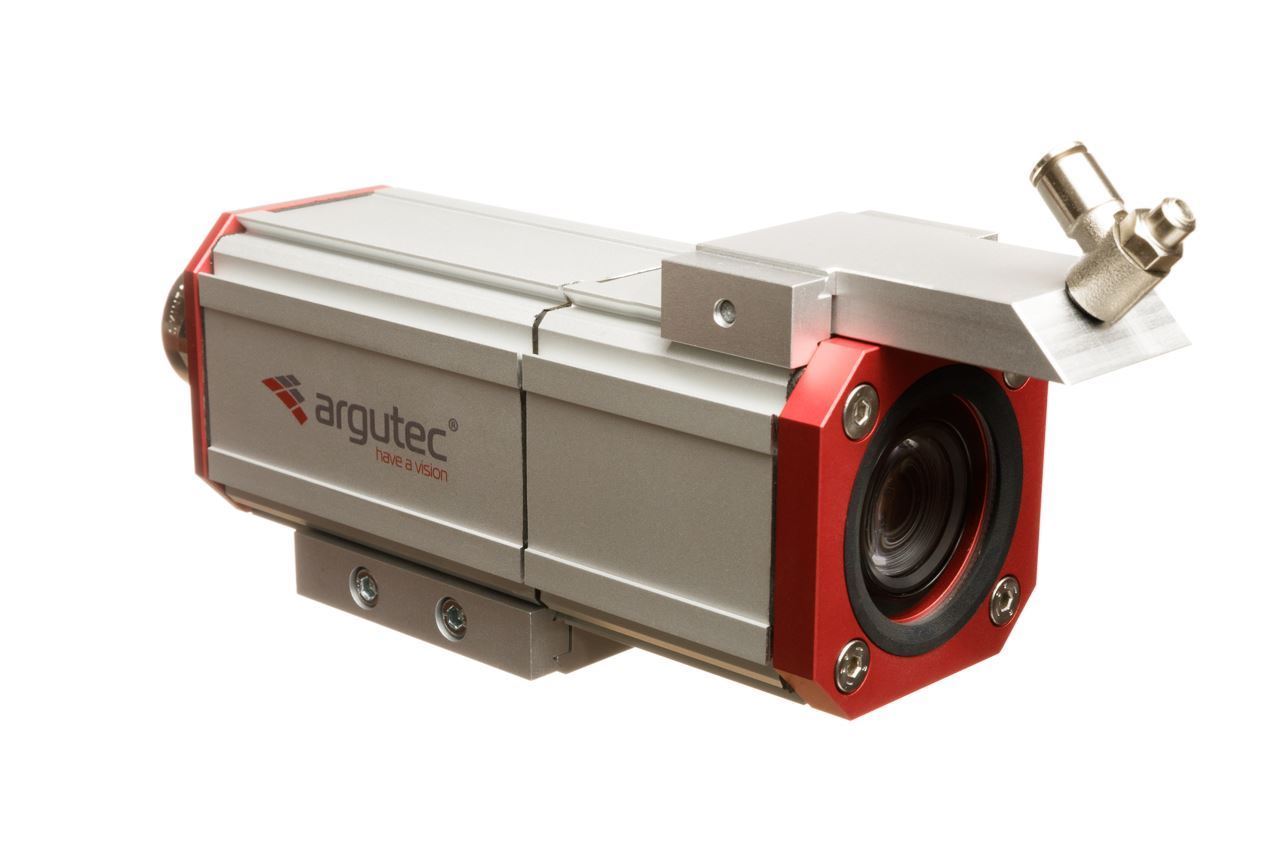

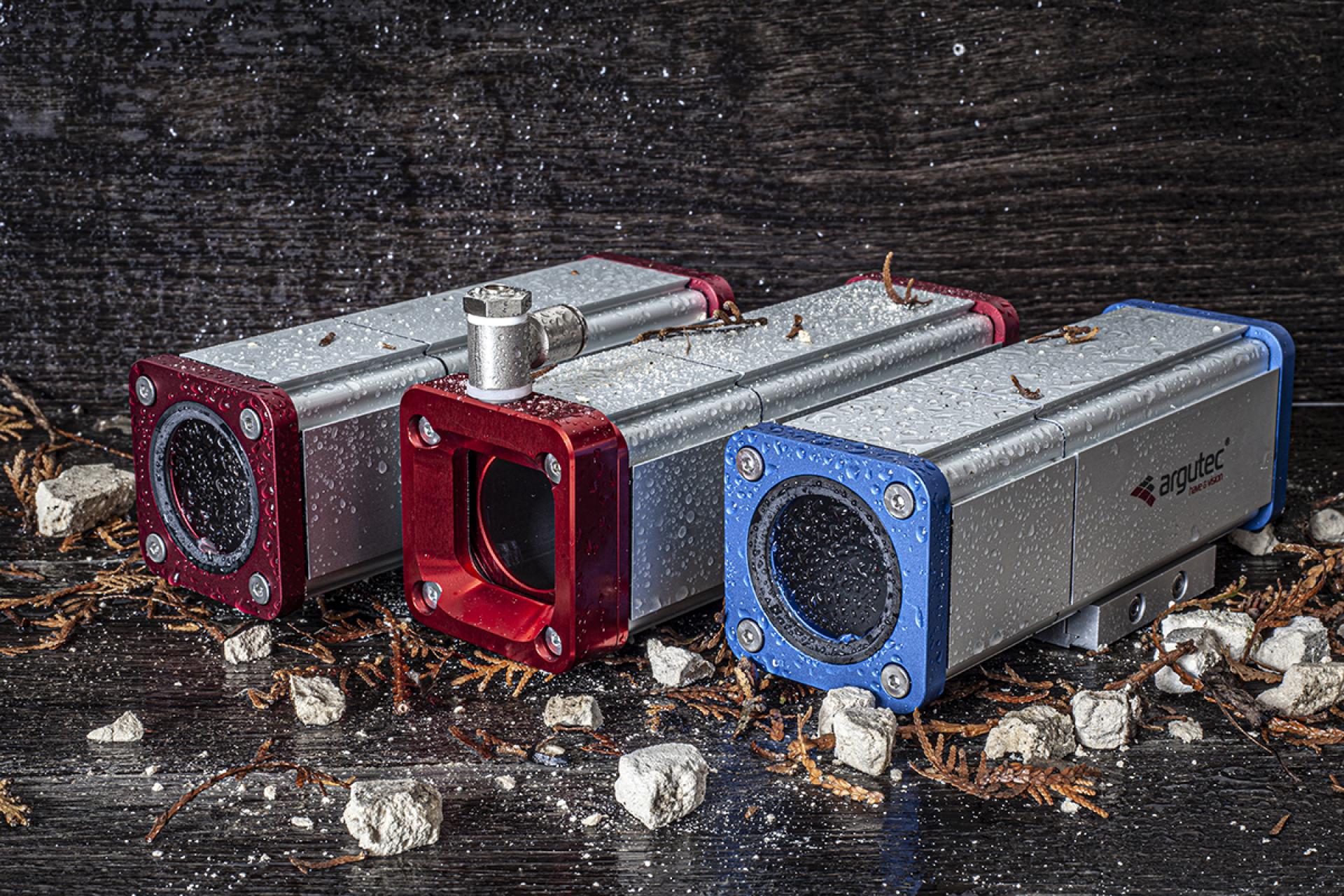

+ IP69 new + Enclosed aluminum design + Window H-K9L (equivalent of borosilicate N-BK7) with anti-reflection coating MgF2 (transm 390-700nm), *optional up to 900nm + Universal camera mount for 27x27 ~ 31x31, 40x30mm + The possibility of producing an atypical enclosure length + Includes camera mounts and enclosure holder
+ Stainless steel body for high durability + Mechanical protection and passive camera cooling + Stainless steel mounting console + Cable gland for 1 or 2 cables + Universal dimensions for flexible camera configuration + Removable front and rear parts + Front part adapted for easy lens adjustment + Ideal for the food and chemical industries
Durability, strength and optical properties are the key factors that influence the choice of material for industrial camera housings. At Argutec, we manufacture covers in stainless steel or aluminium,...
Sensing devices in industrial applications often operate in harsh environments. To ensure their long-term reliability, effective protection against dust, water, chemicals or temperature extremes is im...

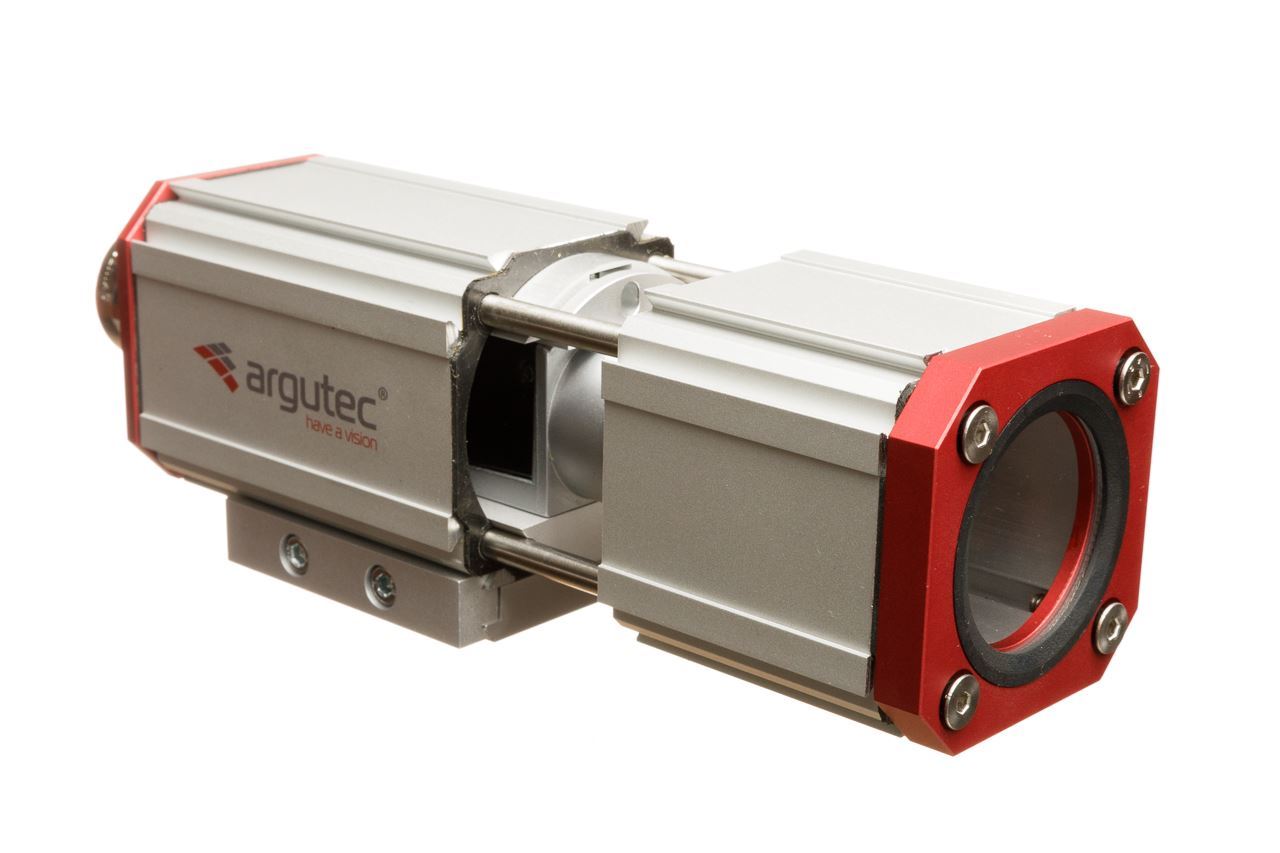

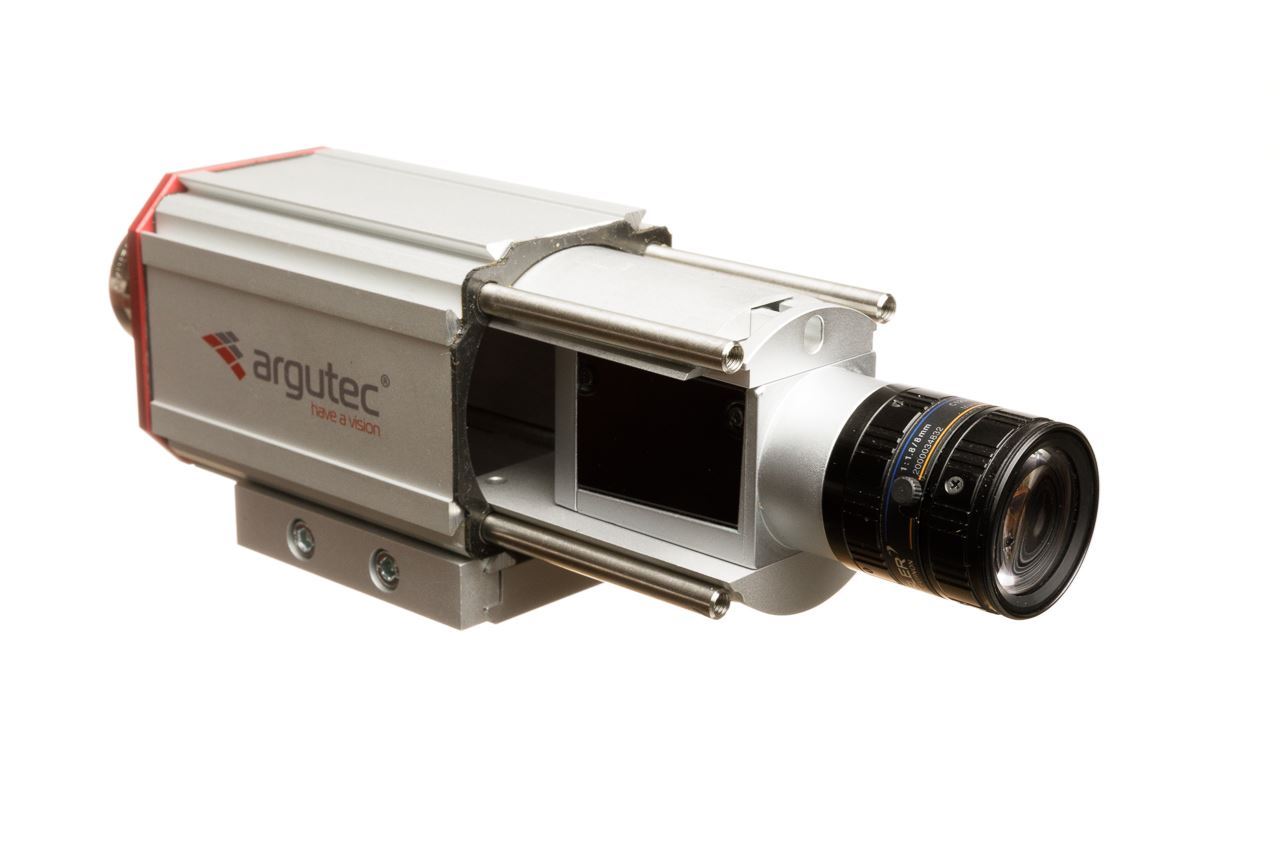

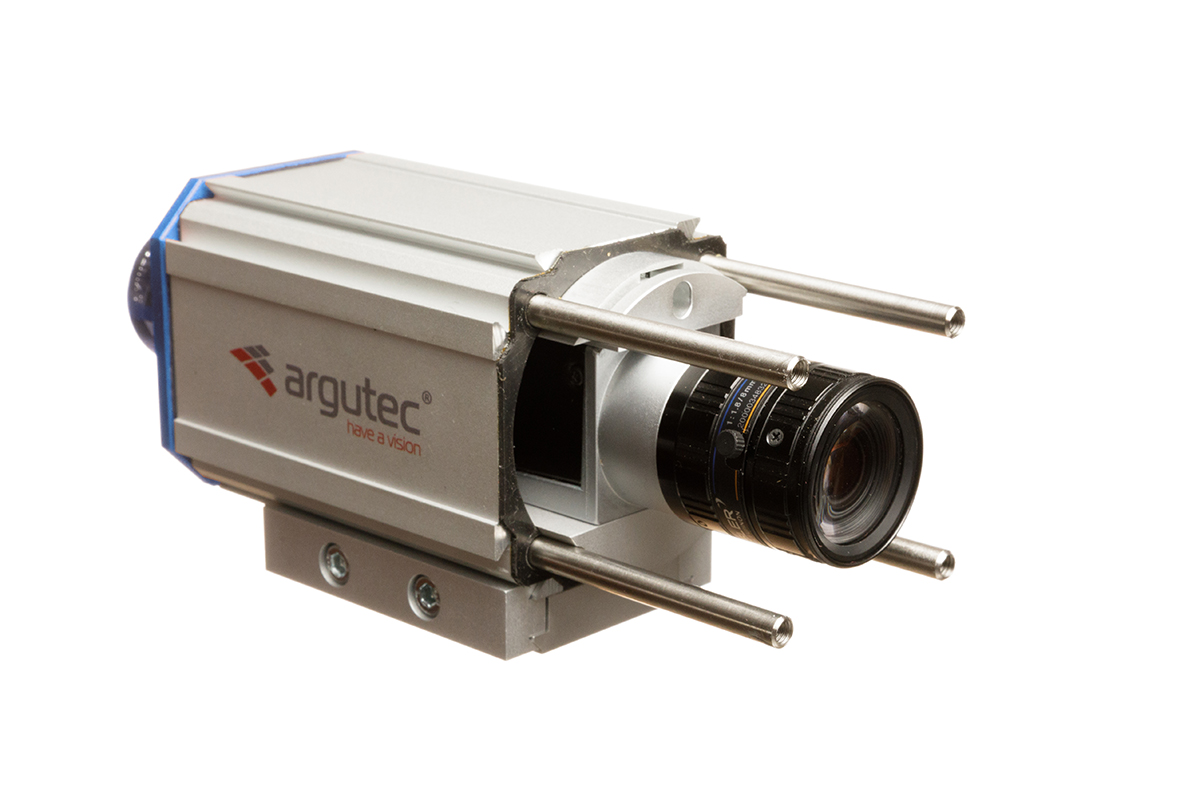

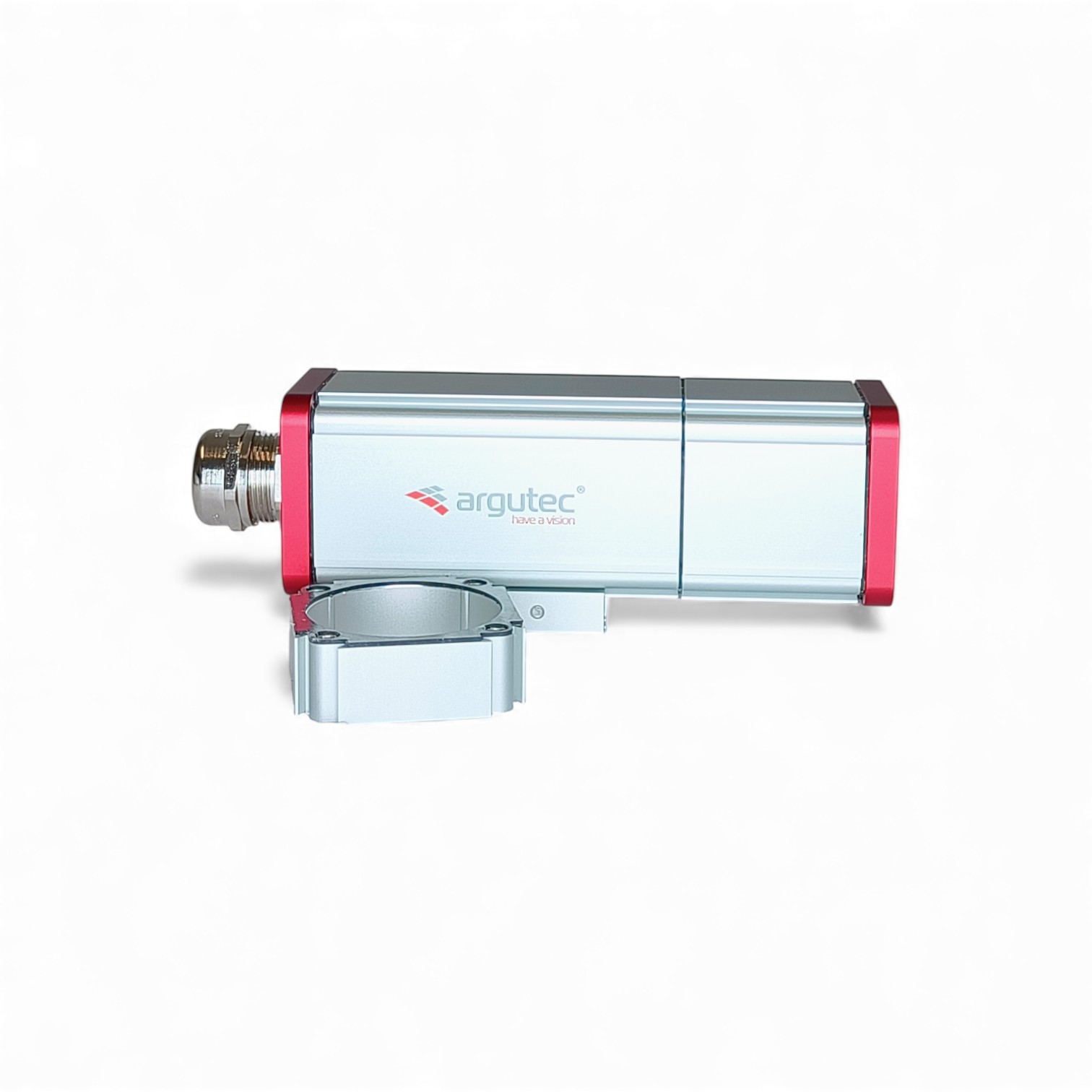

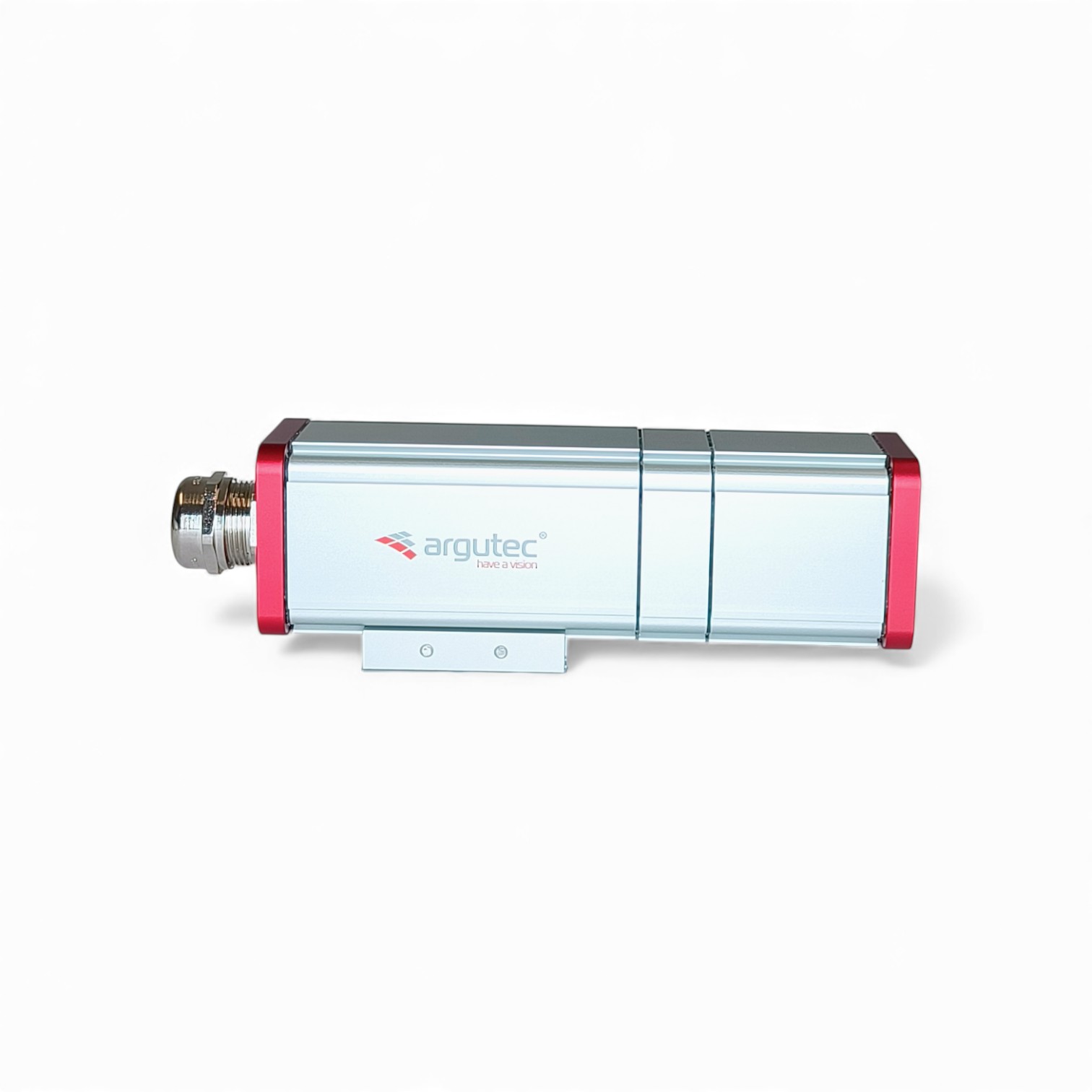

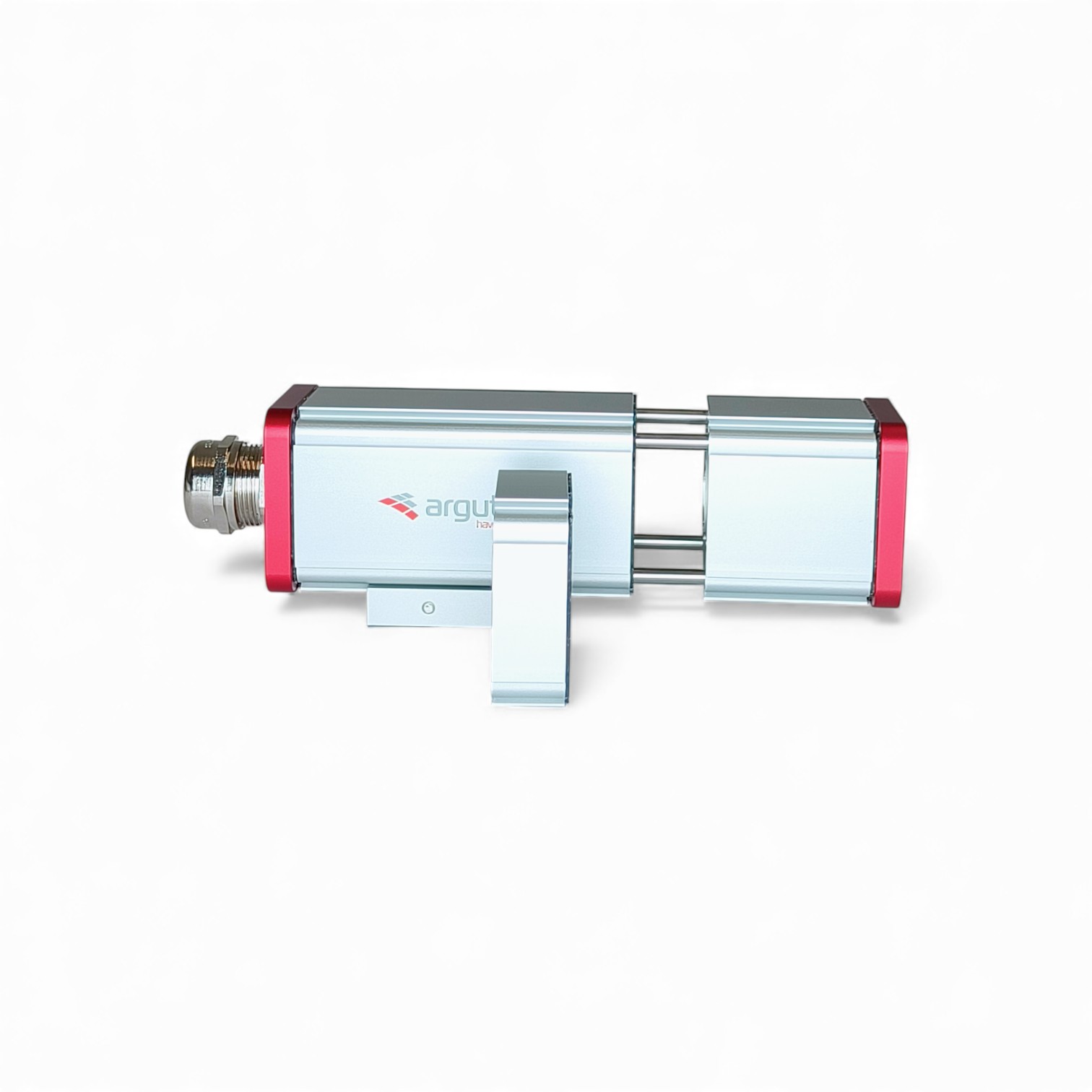

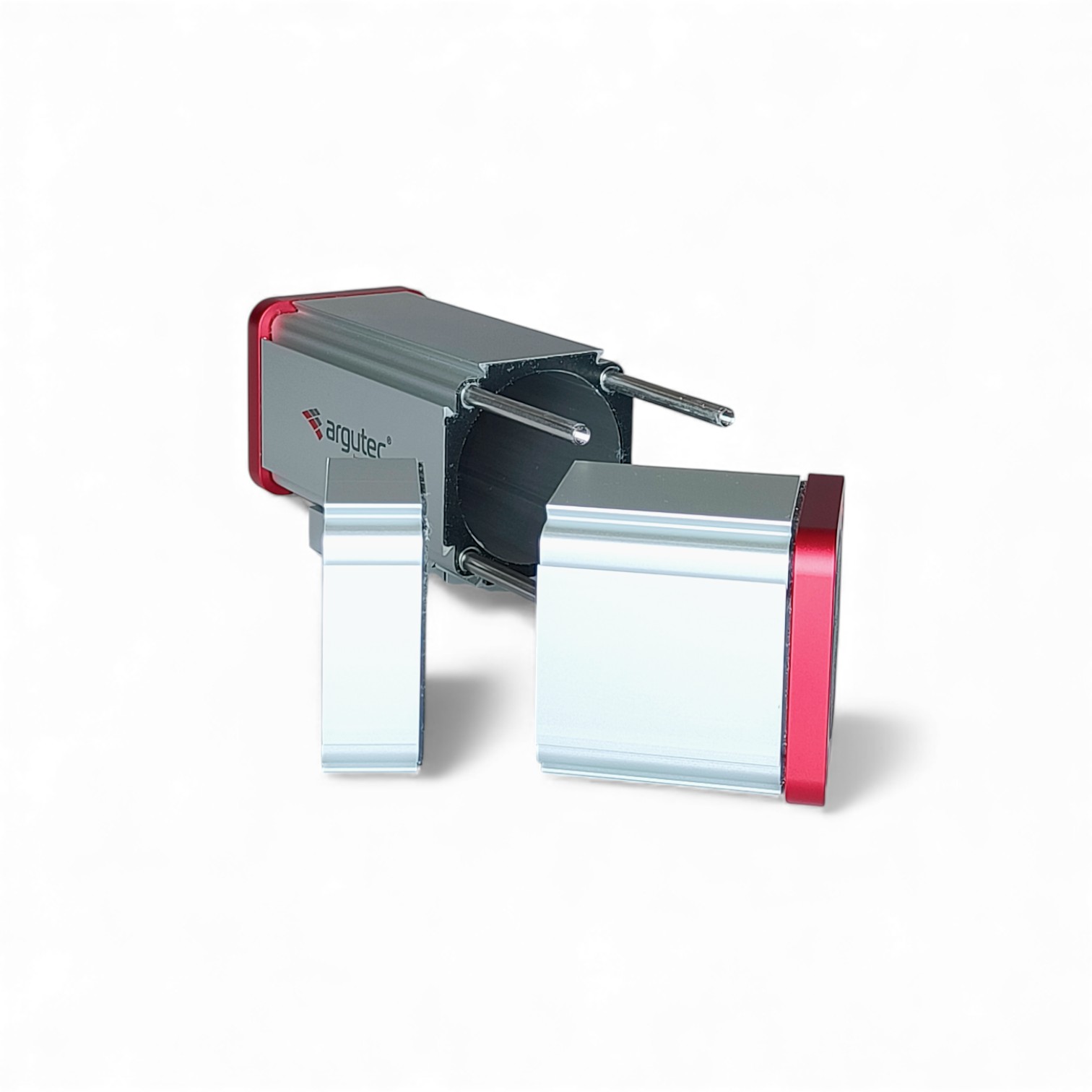

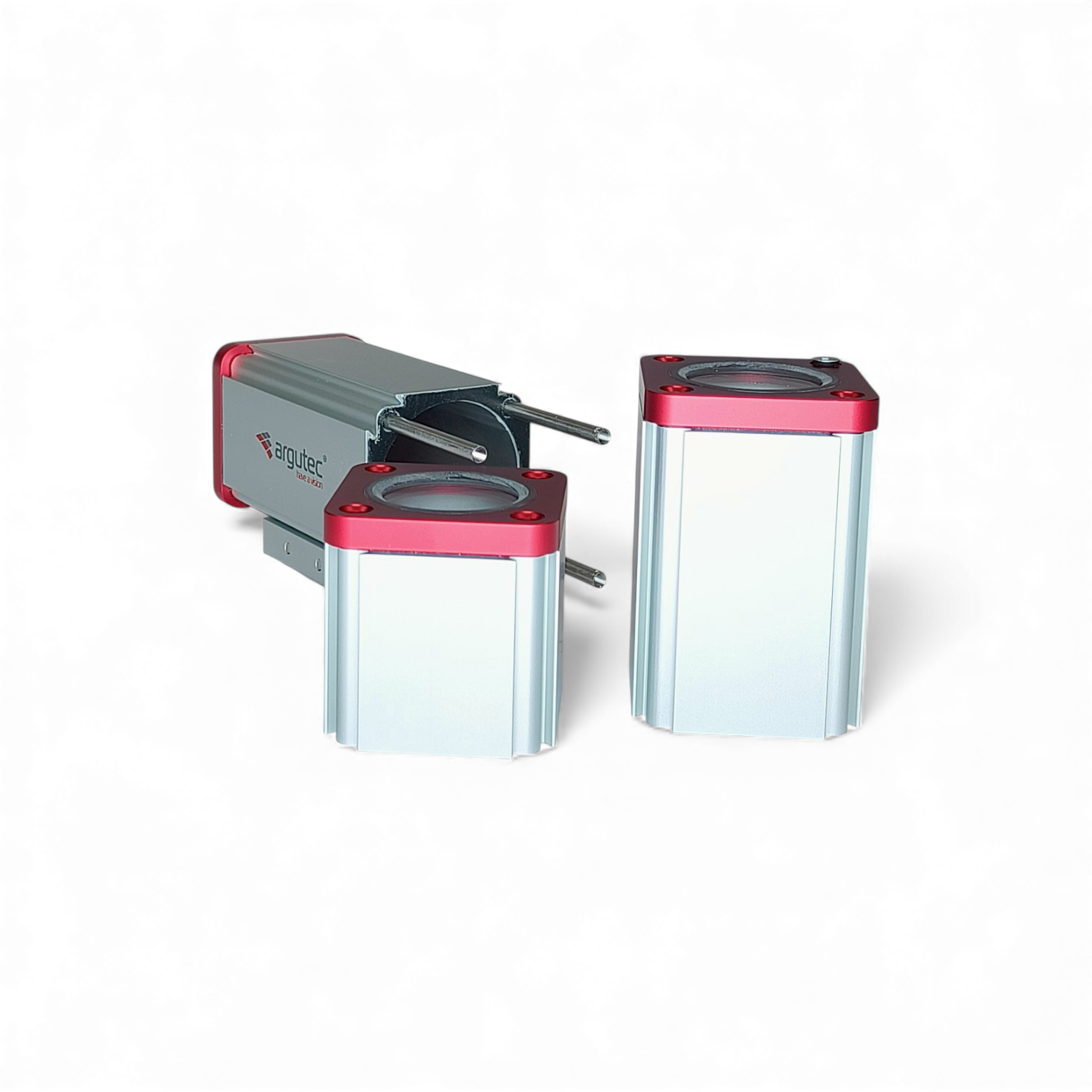

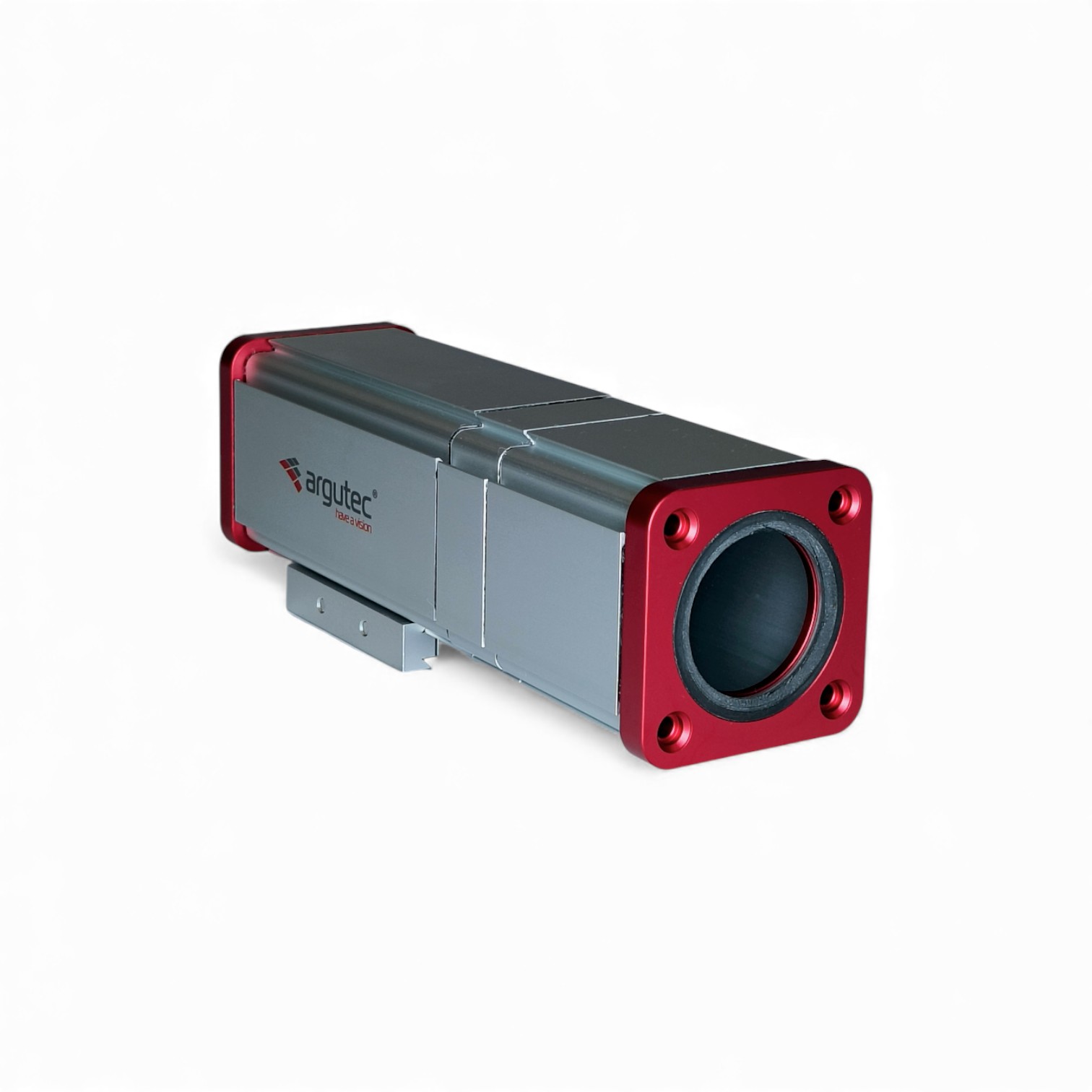

When ordering, we always ask for the specific type of camera and lens in your application. We can prepare the right length of housing for you. For a shorter and wider lens, it is better to shorten the front part so that the image is not cropped by the front cap. Some narrow lenses, are so long that you would have to push the camera too far into the back of the housing.

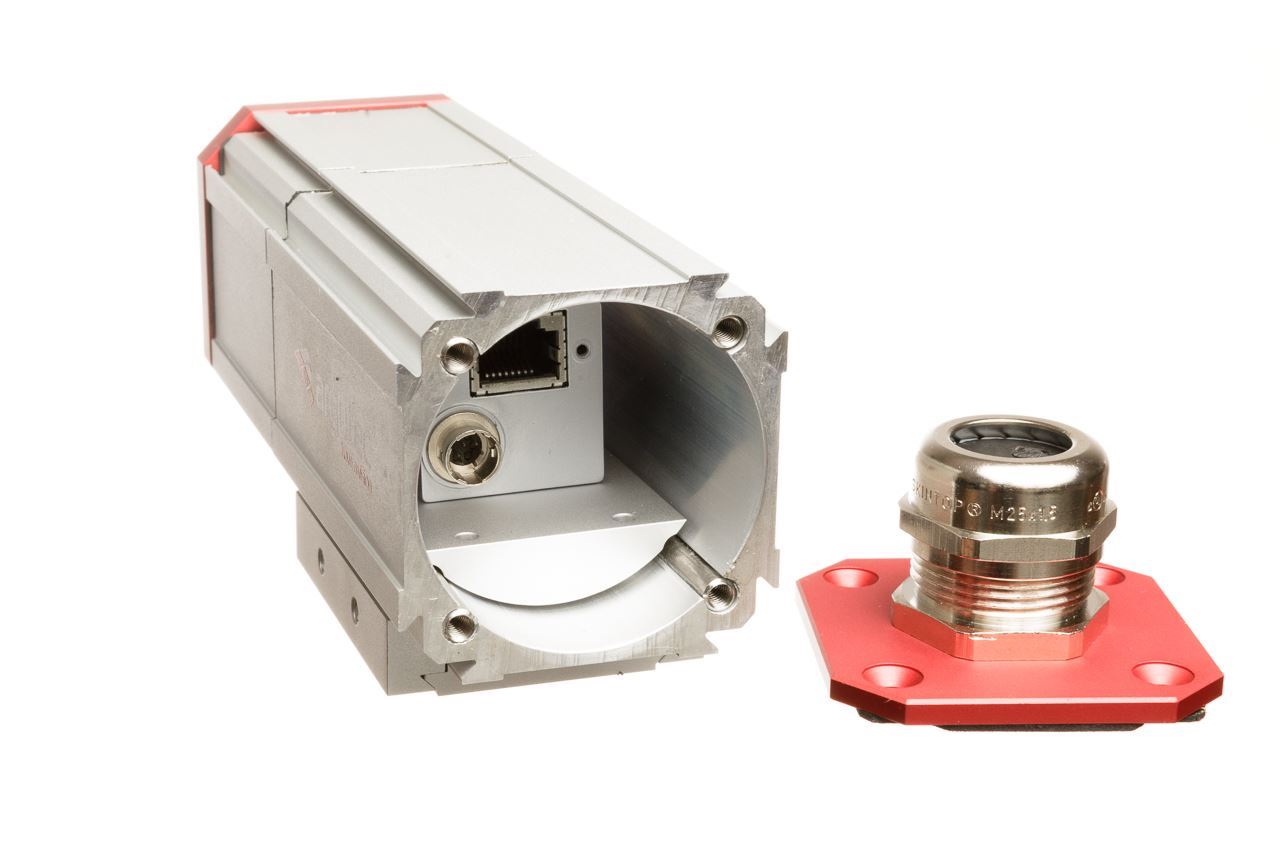

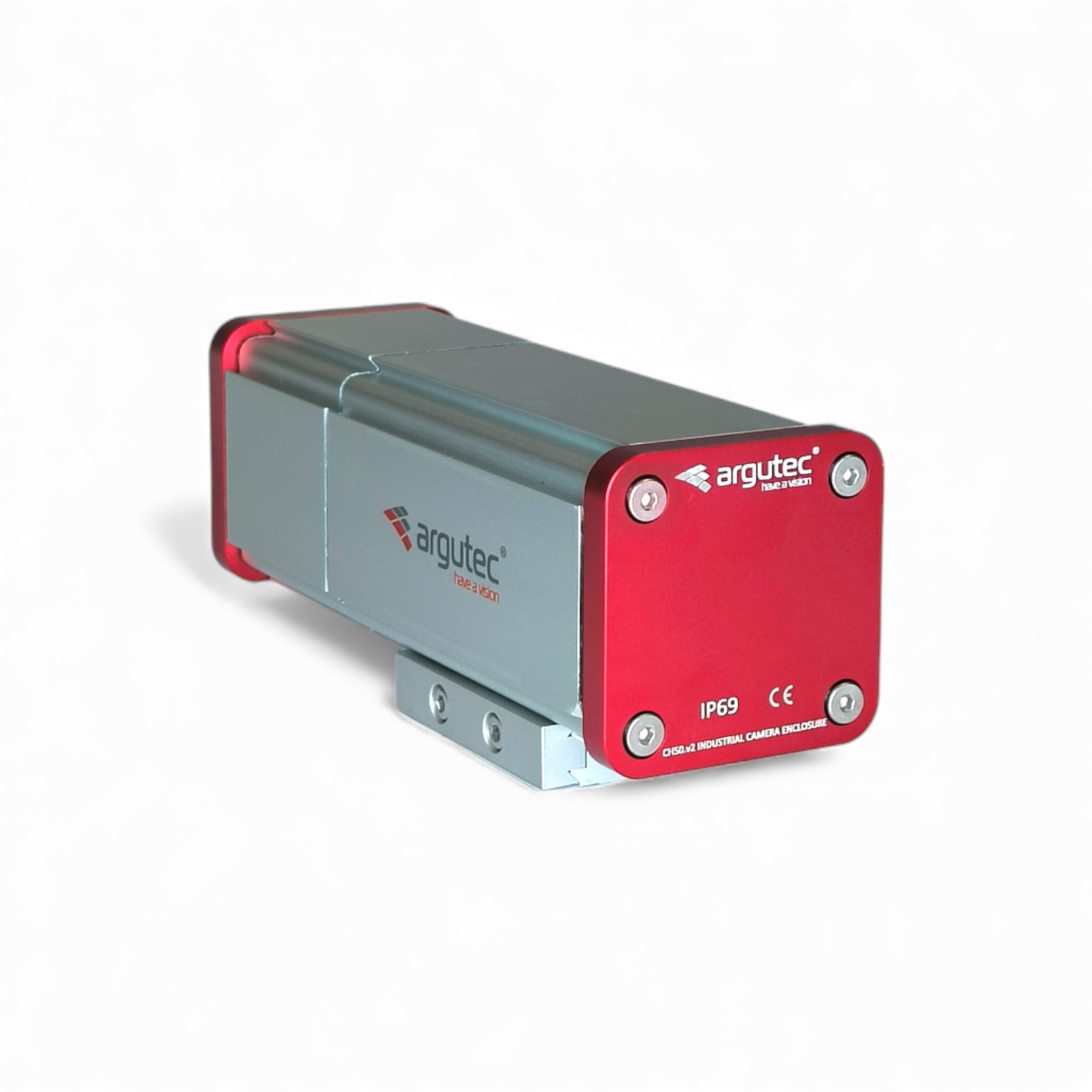

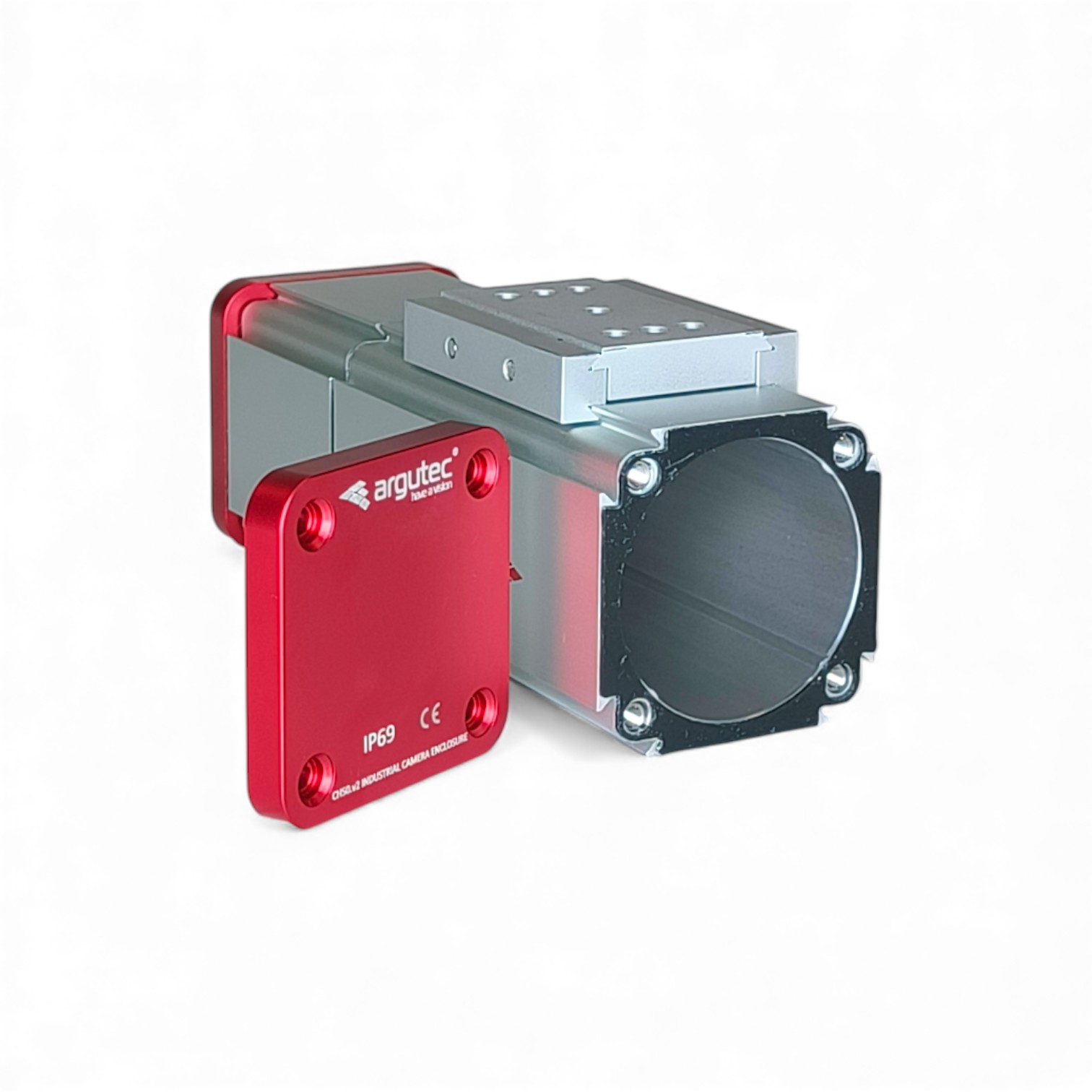

The back bap can also be ordered without a hole for the cable gland, or with a hole other than just for the M25 cable gland, which we will drill for you.

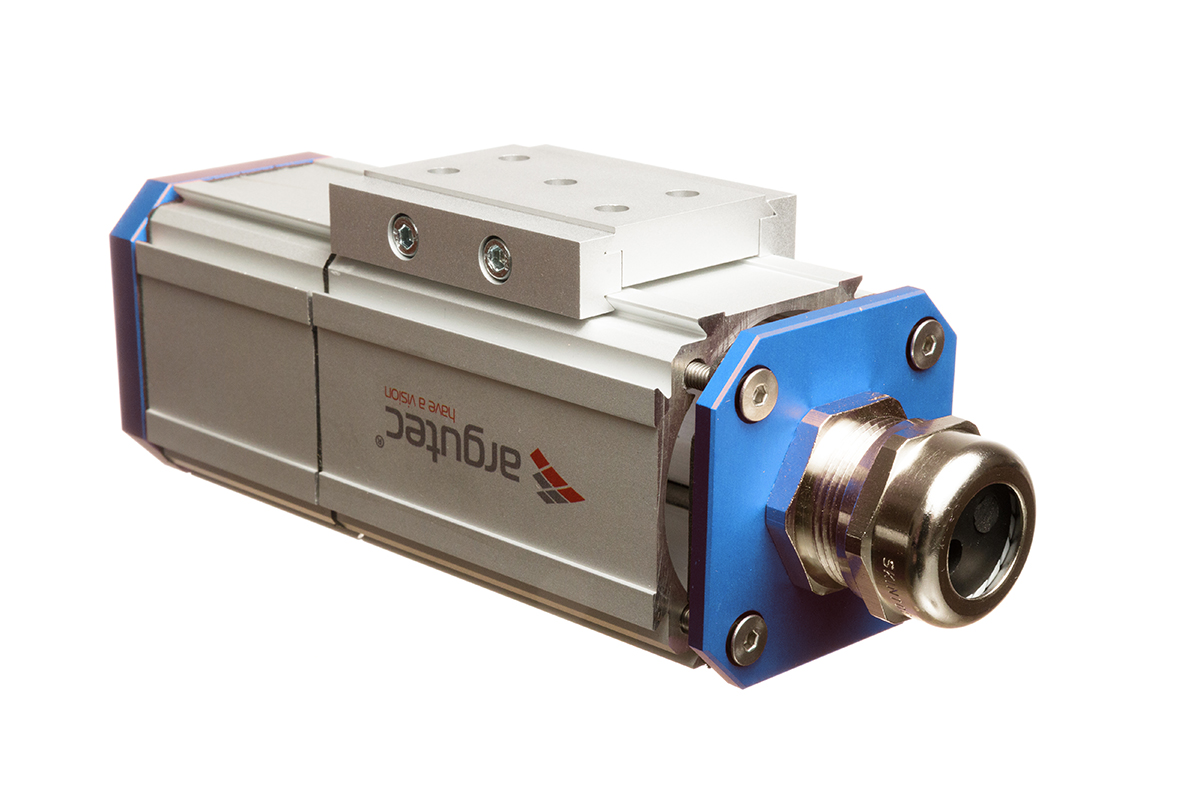

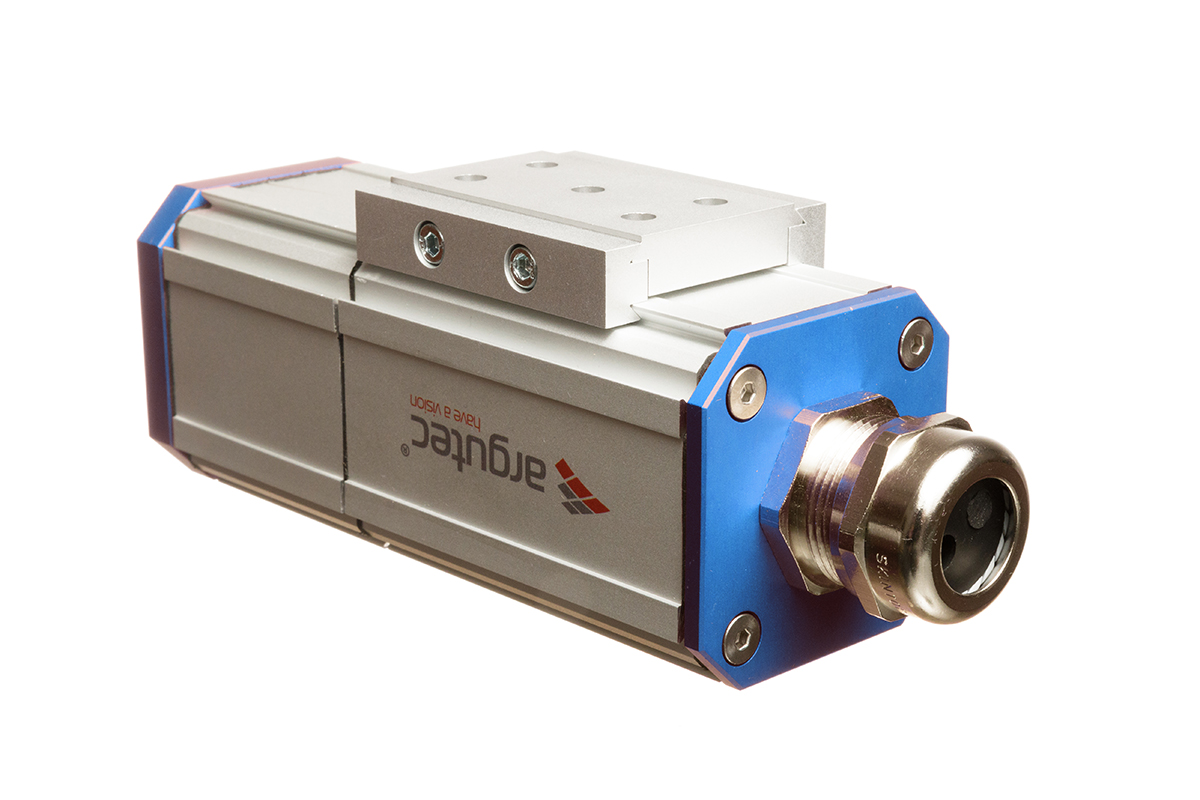

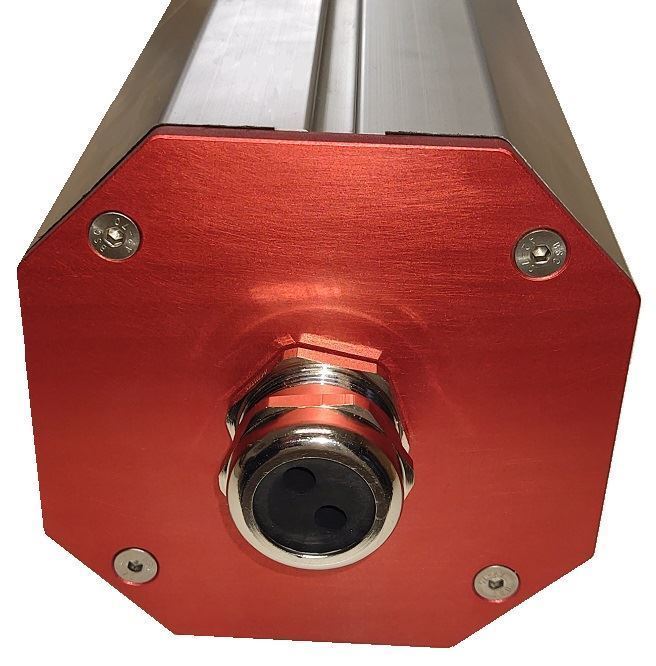

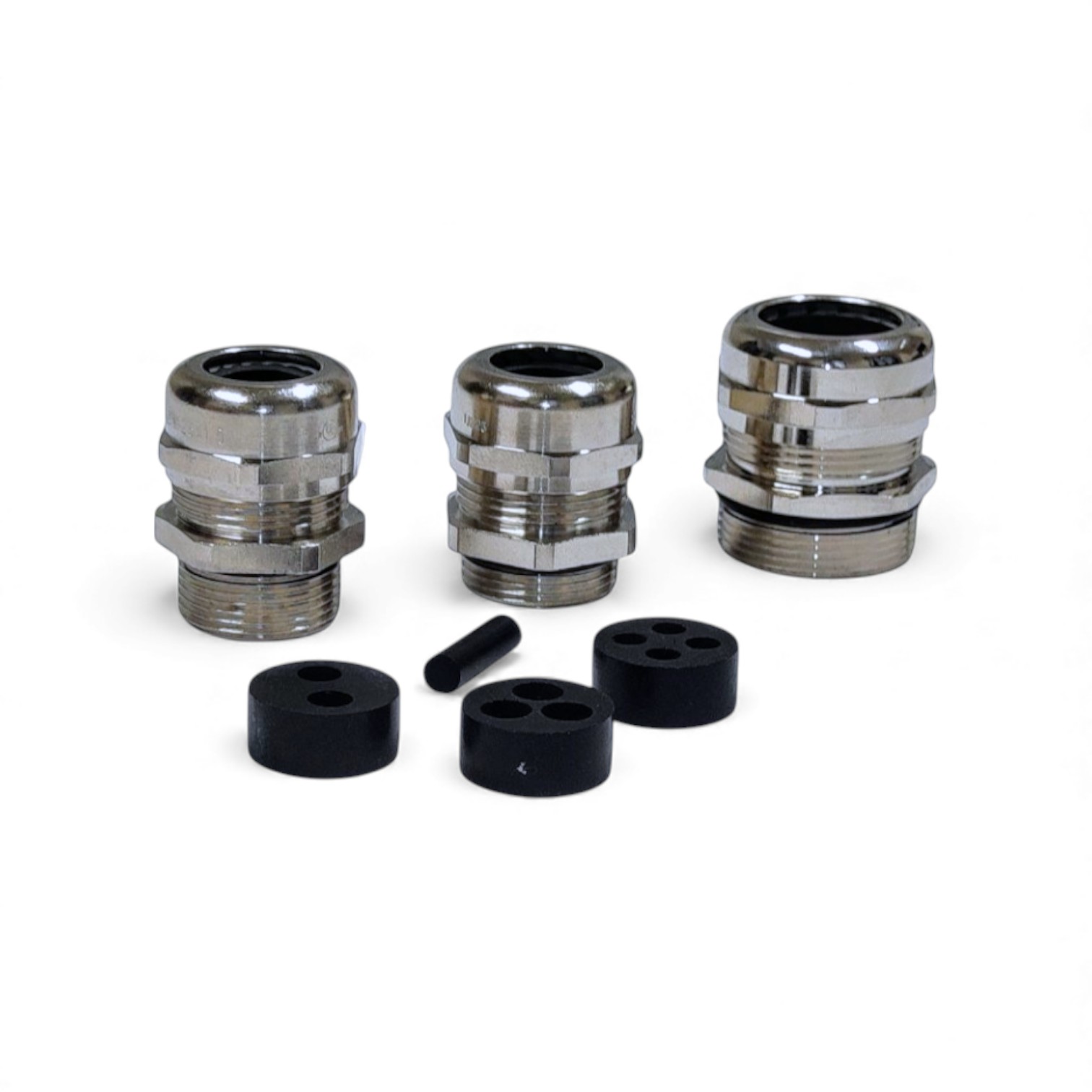

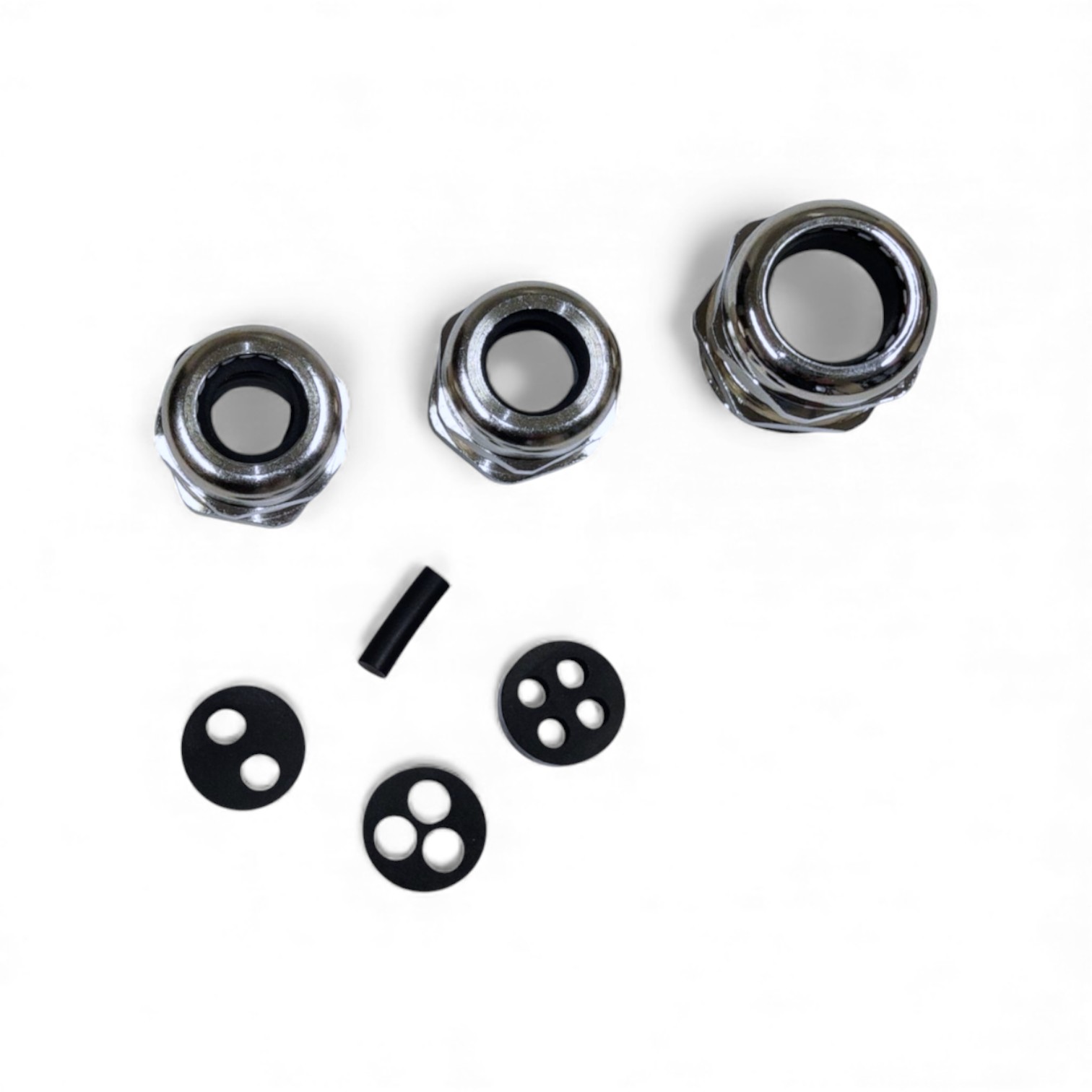

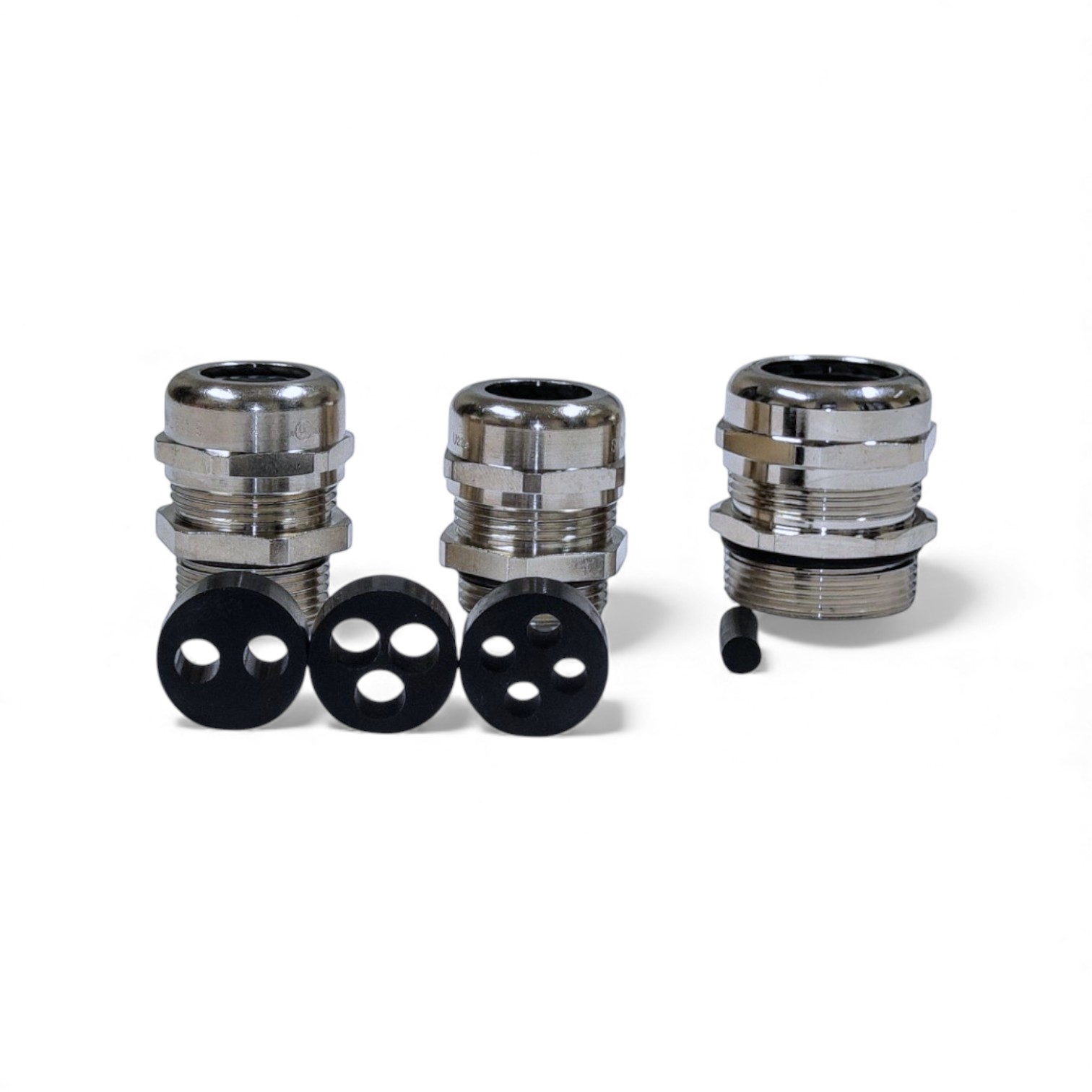

The standard is a nickel-brass M25 cable gland with an insert for 2 cables up to 6 mm. The cable itself is sometimes thicker, or you need to connect 3 cables to your camera. Then we have an insert for 3 cables up to 7mm. In addition, it is possible to supply a stainless steel cable gland or 90° corner cable gland made of polymer.
